Pinpoint Test R: No Medium Speed Controller Area Network (MS-CAN) Communication, All Modules Are Not Responding
Refer to Wiring Diagram Set 14, Module Communications Network for schematic and connector information. Diagrams By Number
Normal Operation
The Medium Speed Controller Area Network (MS-CAN) uses an unshielded twisted pair cable, circuits VDB06 (GY/OG) and VDB07 (VT/OG).
This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Smart Junction Box (SJB)
- Instrument Cluster (IC)
- Accessory Protocol Interface Module (APIM) (if equipped)
- Audio Control Module (ACM)
- Audio Digital Signal Processing (DSP) module (if equipped)
- HVAC module (if equipped)
- Parking Aid Module (PAM) (if equipped)
- Driver Door Module (DDM) (if equipped)
- Driver Seat Module (DSM) (if equipped)
- Dual Climate Controlled Seat Module (DCSM) (if equipped)
- Satellite Digital Audio Receiver System (SDARS) module (if equipped)
PINPOINT TEST R: NO MS-CAN COMMUNICATION, ALL MODULES ARE NOT RESPONDING
NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
NOTE: Failure to disconnect the battery when instructed will result in false resistance readings. Refer to Battery.
-------------------------------------------------
R1 CHECK THE DLC PINS FOR DAMAGE
NOTE: Most faults are due to connector and/or wiring concerns. Carry out a thorough inspection and verification before proceeding with the pinpoint test.
- Ignition OFF.
- Disconnect the scan tool cable from the Data Link Connector (DLC).
- Inspect DLC pins 3 and 11 for damage.
- Are DLC pins 3 and 11 OK?
Yes
GO to R2.
No
REPAIR the DLC as necessary. CLEAR the DTCs. REPEAT the network test with the scan tool.
-------------------------------------------------
R2 CHECK THE MS-CAN TERMINATION RESISTANCE
- Ignition OFF.
- Disconnect: Negative Battery Cable.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance between 54 and 66 ohms?
Yes
GO to R5.
No
GO to R3.
-------------------------------------------------
R3 CHECK THE MS-CAN TERMINATION RESISTOR
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance between 108 and 132 ohms?
Yes
GO to R7.
No
GO to R4.
-------------------------------------------------
R4 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to R9.
No
GO to R7.
-------------------------------------------------
R5 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and ground; and between the DLC C251-11, circuit VDB07 (VT/OG), harness side and ground.
- Are the resistances greater than 1,000 ohms?
Yes
GO to R6.
No
GO to R28.
-------------------------------------------------
R6 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO VOLTAGE
- Connect: Negative Battery Cable.
- Ignition ON.
- Measure the voltage between the DLC C251-3, circuit VDB06 (GY/OG), harness side and ground; and between the DLC C251-11, circuit VDB07 (VT/OG), harness side and ground.
- Is the voltage greater than 6 volts?
Yes
REPAIR the circuit. CLEAR the DTCs. REPEAT the network test with the scan tool.
No
VERIFY all module fuses are OK. If OK, REPEAT the network test with the scan tool.
-------------------------------------------------
R7 CHECK THE MS-CAN CIRCUITS BETWEEN THE DLC AND THE SJB FOR AN OPEN
- Disconnect: SJB C2280c.

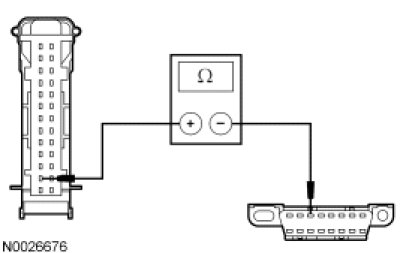

- Measure the resistance between the SJB C2280d-17, circuit VDB06 (GY/OG), harness side and the Data Link Connector (DLC) C251-3, circuit VDB06 (GY/OG), harness side.
- Measure the resistance between the SJB C2280d-1, circuit VDB07 (VT/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Are the resistances less than 5 ohms?
Yes
GO to R8.
No
REPAIR the circuit in question. CONNECT the negative battery cable. CONNECT the SJB. CLEAR the DTCs. REPEAT the network test with the scan tool.
-------------------------------------------------
R8 CHECK THE MS-CAN CIRCUITS BETWEEN THE IC AND THE DLC FOR AN OPEN
- Measure the resistance between the Instrument Cluster (IC) C220-2, circuit VDB06 (GY/OG), harness side and the DLC C251-3, circuit VDB06 (GY/OG), harness side.
- Measure the resistance between the IC C220-1, circuit VDB07 (VT/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Are the resistances less than 5 ohms?
Yes
VERIFY all module fuses are OK. If OK, CONNECT all modules. CONNECT the negative battery cable. REPEAT the network test with the scan tool.
No
REPAIR the circuit in question. CONNECT the negative battery cable. CLEAR the DTCs. REPEAT the network test with the scan tool.
-------------------------------------------------
R9 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE SJB DISCONNECTED
- Disconnect: SJB C2280d.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to R10.
No
CONNECT the negative battery cable. GO to R47.
-------------------------------------------------
R10 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE IC DISCONNECTED
- Disconnect: IC C220.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to R11.
No
CONNECT the negative battery cable. GO to R48.
-------------------------------------------------
R11 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE ACM DISCONNECTED
- Disconnect: Audio Control Module (ACM) C290c (Base Audio/Audiophile) or C240c (THX(R) Audio/Navigation).
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to R12.
No
CONNECT the negative battery cable. GO to R49.
-------------------------------------------------
R12 VERIFY VEHICLE EQUIPMENT - AUDIO DSP MODULE
- Inspect the vehicle for an audio Digital Signal Processing (DSP) module.
- Is the vehicle equipped with an audio DSP module?
Yes
GO to R13.
No
GO to R14.
-------------------------------------------------
R13 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE AUDIO DSP MODULE DISCONNECTED
- Disconnect: Audio DSP Module C4326c.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to R14.
No
CONNECT the negative battery cable. GO to R50.
-------------------------------------------------
R14 VERIFY VEHICLE EQUIPMENT - HVAC MODULE
- Inspect the vehicle for a HVAC module.
- Is the vehicle equipped with a HVAC module?
Yes
GO to R15.
No
GO to R16.
-------------------------------------------------
R15 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE HVAC MODULE DISCONNECTED
- Disconnect: HVAC Module C228a (Single-Zone) or C2356a (Dual-Zone).
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to R16.
No
CONNECT the negative battery cable. GO to R51.
-------------------------------------------------
R16 VERIFY VEHICLE EQUIPMENT - PAM
- Inspect the vehicle for a Parking Aid Module (PAM).
- Is the vehicle equipped with a PAM?
Yes
GO to R17.
No
GO to R18.
-------------------------------------------------
R17 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE PAM DISCONNECTED
- Disconnect: PAM C4014.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to R18.
No
CONNECT the negative battery cable. GO to R52.
-------------------------------------------------
R18 VERIFY VEHICLE EQUIPMENT - DDM
- Inspect the vehicle for a Driver Door Module (DDM).
- Is the vehicle equipped with a DDM?
Yes
GO to R19.
No
GO to R20.
-------------------------------------------------
R19 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE DDM DISCONNECTED
- Disconnect: DDM C568a.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to R20.
No
CONNECT the negative battery cable. GO to R53.
-------------------------------------------------
R20 VERIFY VEHICLE EQUIPMENT - DSM
- Inspect the vehicle for a Driver Seat Module (DSM).
- Is the vehicle equipped with a DSM?
Yes
GO to R21.
No
GO to R22.
-------------------------------------------------
R21 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE DSM DISCONNECTED
- Disconnect: DSM C3299c.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to R22.
No
CONNECT the negative battery cable. GO to R54.
-------------------------------------------------
R22 VERIFY VEHICLE EQUIPMENT - DCSM
- Inspect the vehicle for a Dual Climate Controlled Seat Module (DCSM).
- Is the vehicle equipped with a DCSM?
Yes
GO to R23.
No
GO to R24.
-------------------------------------------------
R23 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE DCSM DISCONNECTED
- Disconnect: DCSM C3305c.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to R24.
No
CONNECT the negative battery cable. GO to R55.
-------------------------------------------------
R24 VERIFY VEHICLE EQUIPMENT - SDARS MODULE
- Inspect the vehicle for a Satellite Digital Audio Receiver System (SDARS) module.
- Is the vehicle equipped with a SDARS module?
Yes
GO to R25.
No
GO to R26.
-------------------------------------------------
R25 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE SDARS MODULE DISCONNECTED
- Disconnect: SDARS Module C4300.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to R26.
No
CONNECT the negative battery cable. GO to R56.
-------------------------------------------------
R26 VERIFY VEHICLE EQUIPMENT - APIM
- Inspect the vehicle for an Accessory Protocol Interface Module (APIM).
- Is the vehicle equipped with an APIM?
Yes
GO to R27.
No
REPAIR the circuit. CONNECT all modules. CONNECT the negative battery cable. CLEAR the DTCs. REPEAT the network test with the scan tool.
-------------------------------------------------
R27 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE APIM DISCONNECTED
- Disconnect: APIM C3338.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
REPAIR the circuit. CONNECT all modules. CONNECT the negative battery cable. CLEAR the DTCs. REPEAT the network test with the scan tool.
No
CONNECT the negative battery cable. GO to R57.
-------------------------------------------------
R28 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE SJB DISCONNECTED
- Disconnect: SJB C2280d.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Are the resistances greater than 1,000 ohms?
Yes
CONNECT the negative battery cable. GO to R47.
No
GO to R29.
-------------------------------------------------
R29 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE IC DISCONNECTED
- Disconnect: IC C220.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Are the resistances greater than 1,000 ohms?
Yes
CONNECT the negative battery cable. GO to R48.
No
GO to R30.
-------------------------------------------------
R30 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND WITH THE ACM DISCONNECTED
- Disconnect: ACM C290c (Base Audio/Audiophile) or C240c (THX(R) Audio/Navigation).
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Are the resistances greater than 1,000 ohms?
Yes
CONNECT the negative battery cable. GO to R49.
No
GO to R31.
-------------------------------------------------
