Home >> Mercury >> 2009 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Module Configuration

Module Configuration




Communications Network

Module Configuration

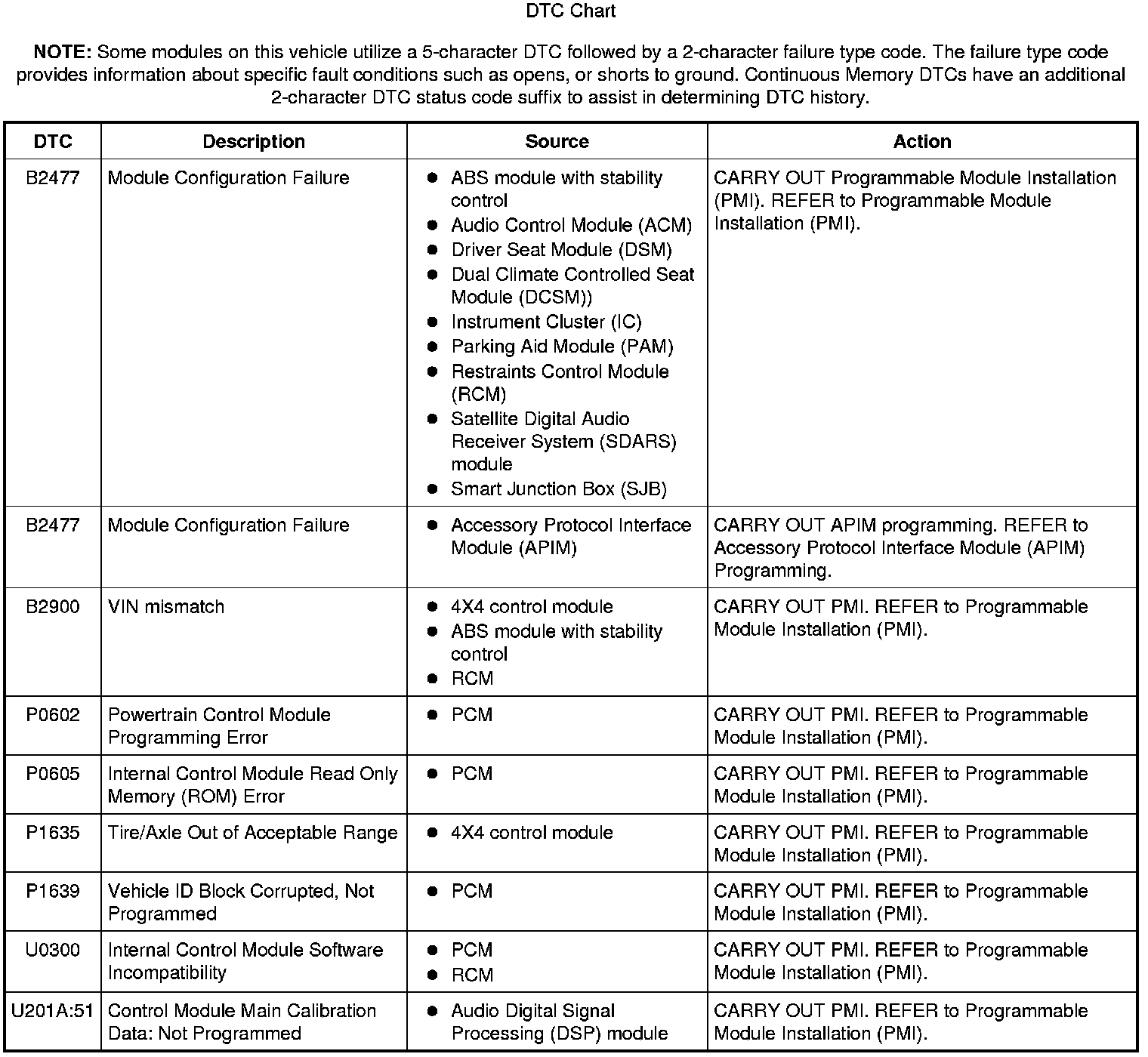

B2477-B2900 / P0602-P1639 / U201A:51-U0300:

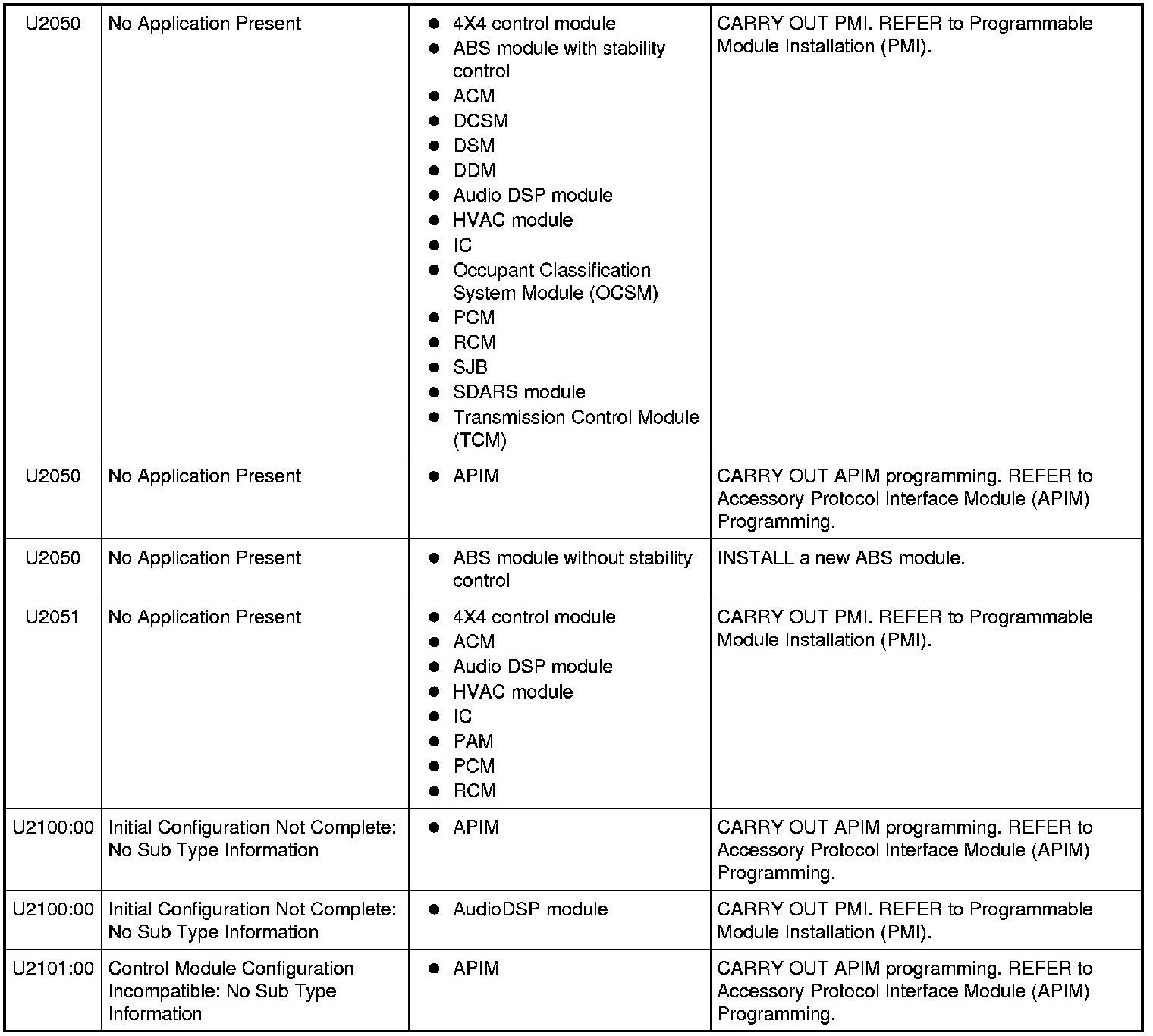

U2050-U2101:00:
