Mercury
>>
2009
>>
Milan AWD V6-3.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>
Instrumentation, Message Center and Warning Chimes
>>
Instrument Cluster
Instrument Cluster
Instrumentation, Message Center and Warning Chimes
DTC Charts

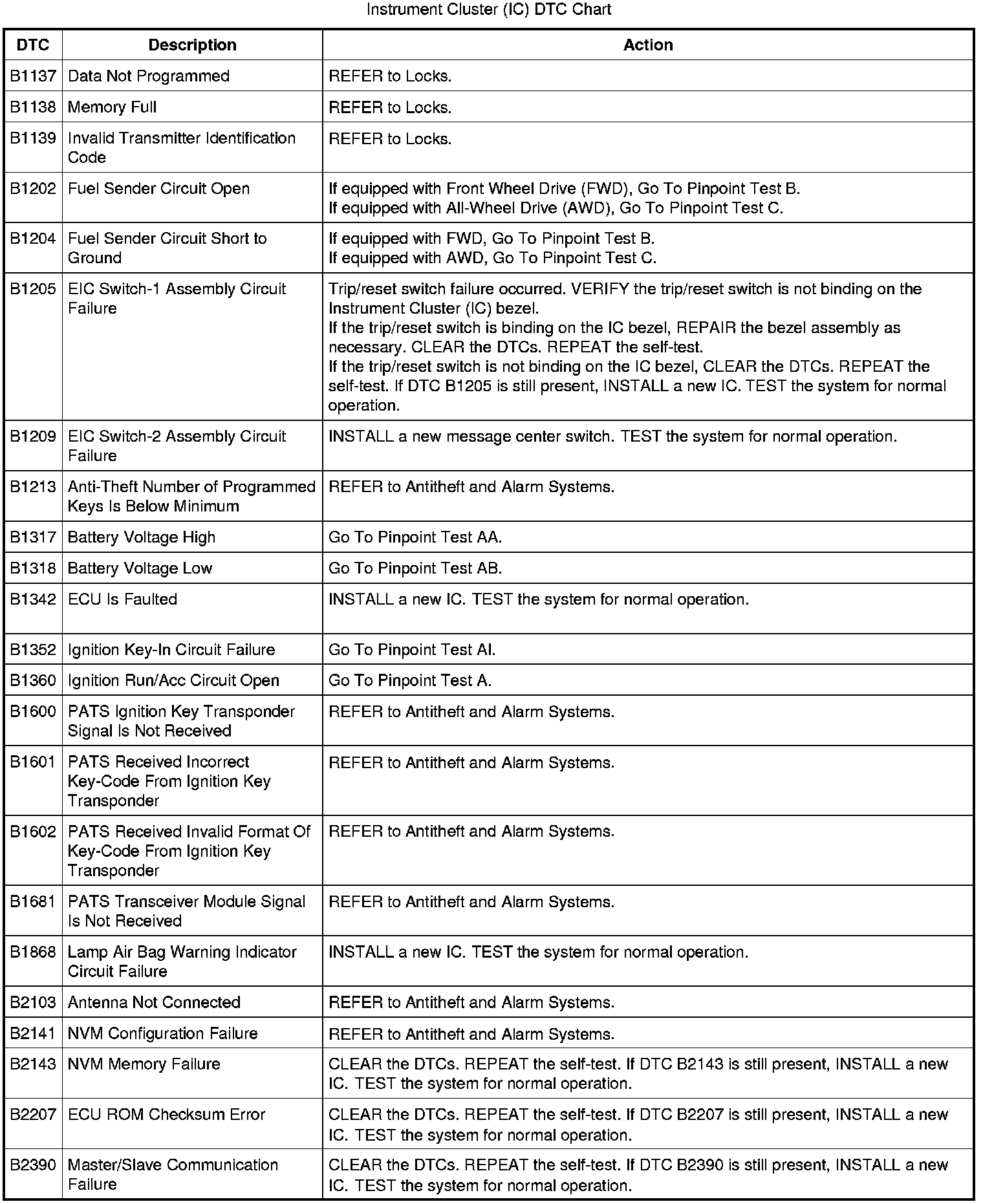

B1137-B2390:

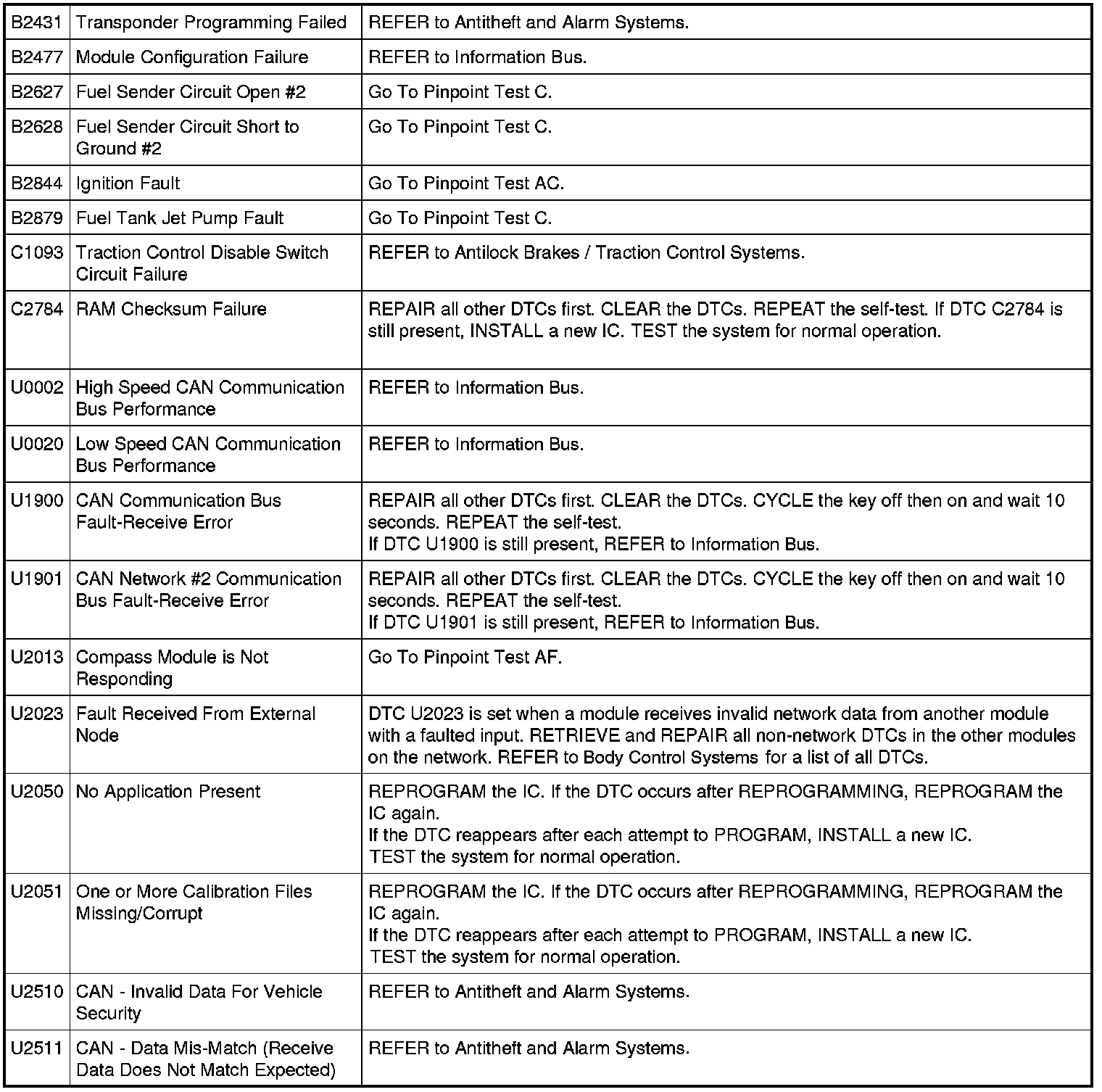

B2431-B2879 / C1093-C2784 / U0002-U2511:
