Engine Lubrication Components - Exploded View




Engine Lubrication Components - Exploded View

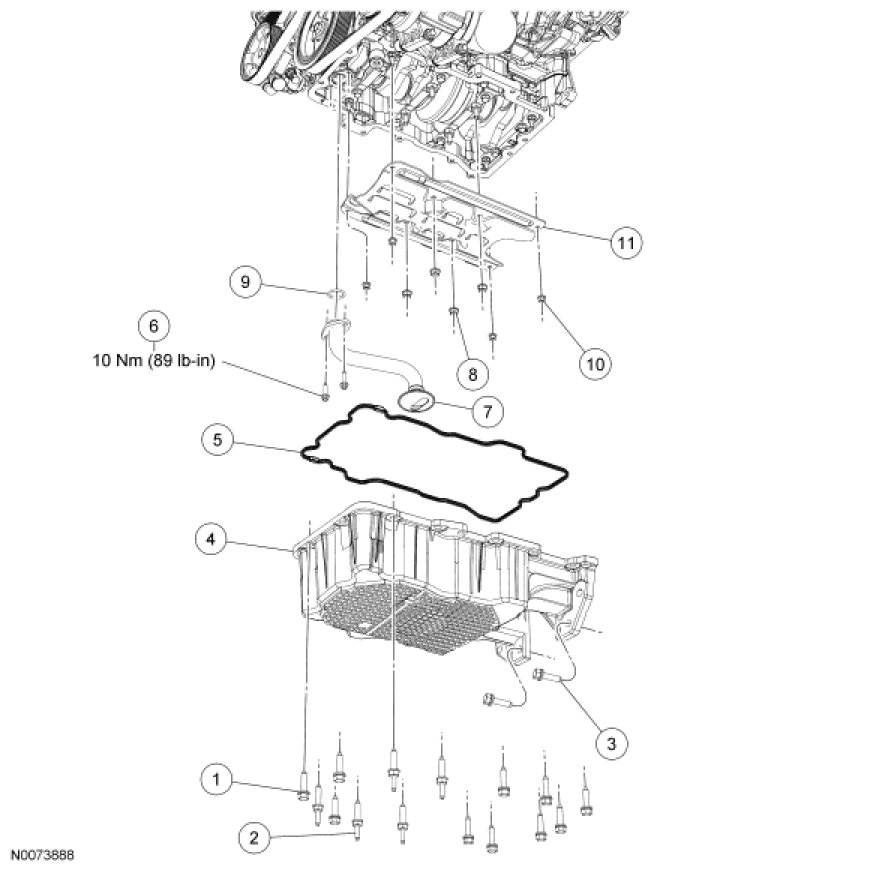

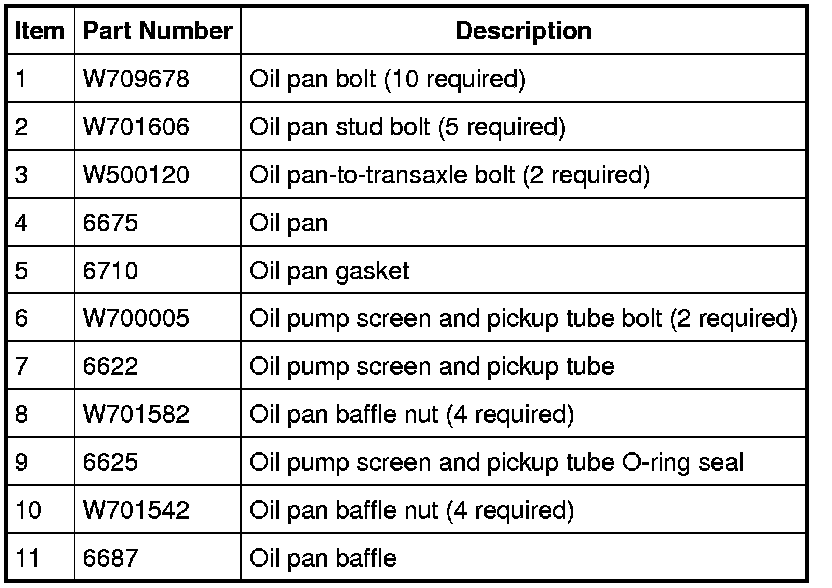

Oil Pan, Oil Pump Screen and Pickup Tube and Oil Pan Baffle

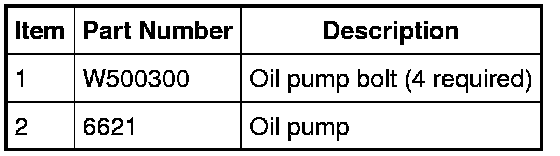

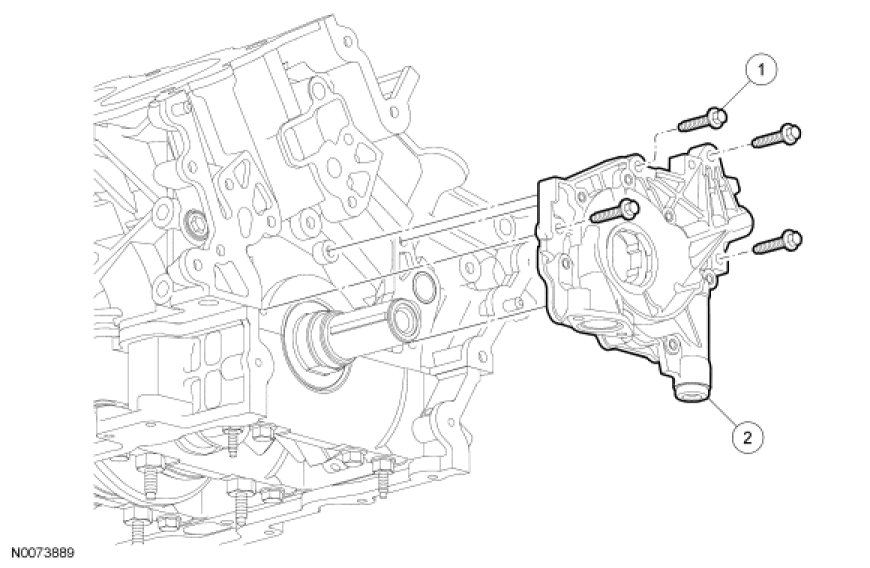

Oil Pump









1. For additional information, refer to the procedures.
