Oil Level Indicator and Tube

Oil Level Indicator and Tube













Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the oil level indicator.

3. Remove the oil pressure switch. For additional information, refer to Engine Oil Pressure (EOP) Switch Service and Repair.

4. If equipped, disconnect the block heater electrical connector and wiring harness retainers.

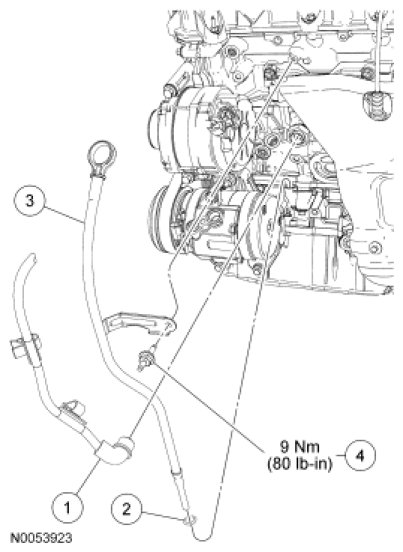

5. Remove the stud bolt and the oil level indicator tube.
- Discard the O-ring seal.

- To install, tighten to 9 Nm (80 lb-in).

6. NOTE: Install a new O-ring seal and lubricate with clean engine oil.

To install, reverse the removal procedure.
