Valve Train Components - Exploded View




Valve Train Components - Exploded View

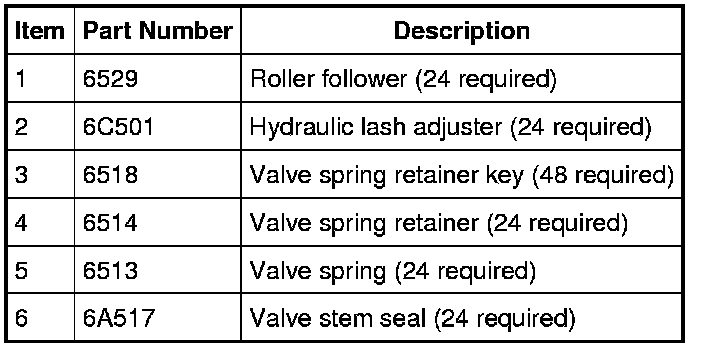

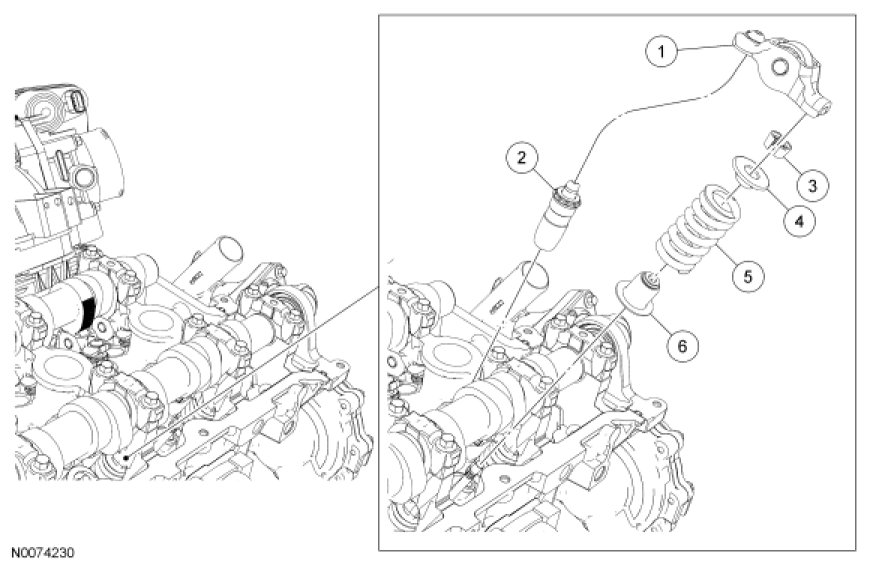

LH Side

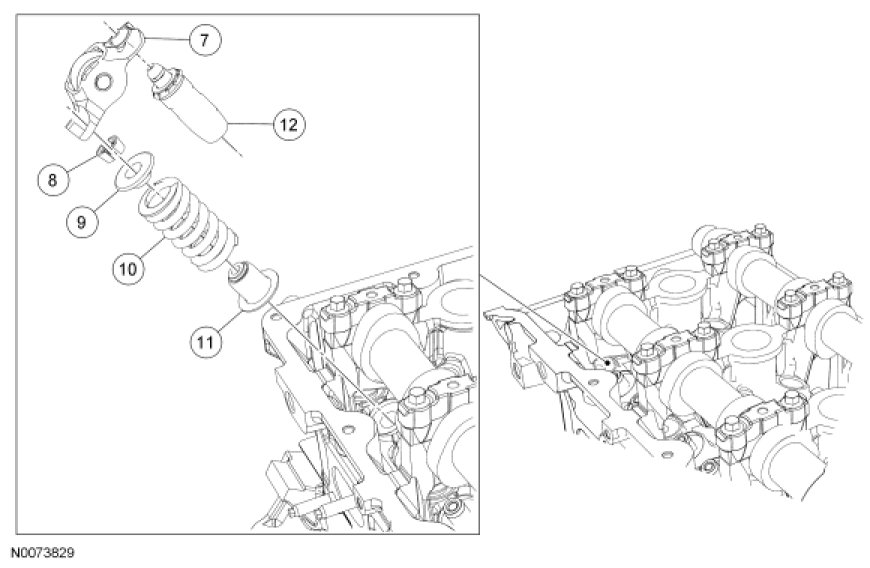

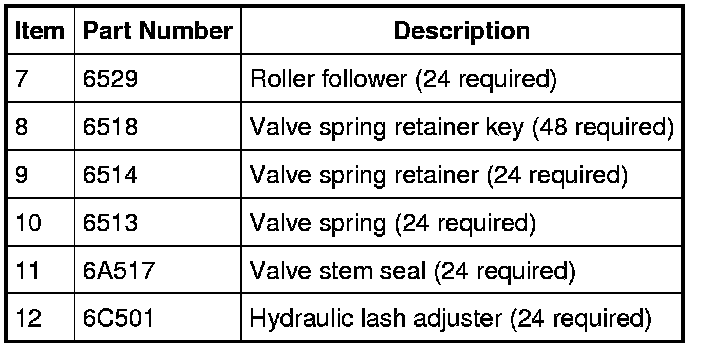

RH Side









1. For additional information, refer to the procedures.
