Brake Caliper Anchor Plate

Brake Caliper Anchor Plate









Removal and Installation

1. Remove the brake pads. For additional information, refer to Brake Pads Front Disc Brake.

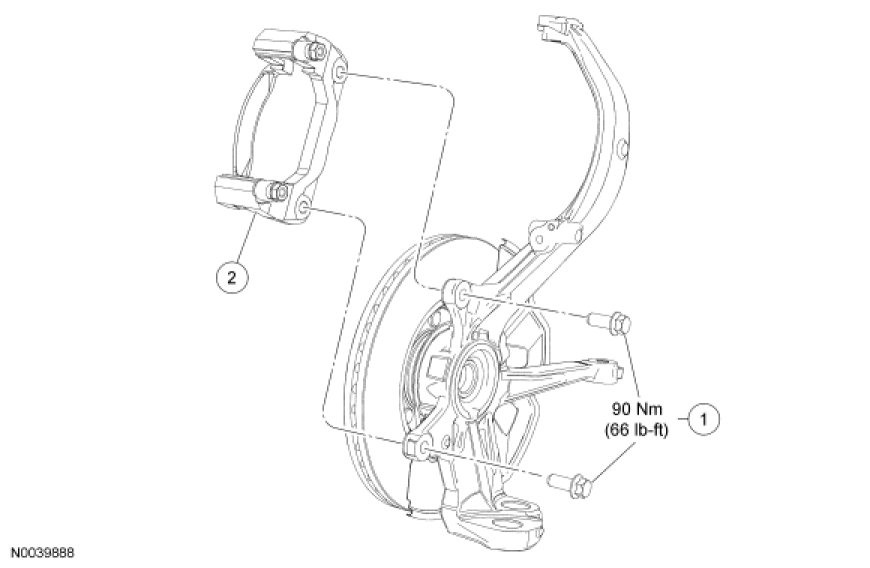

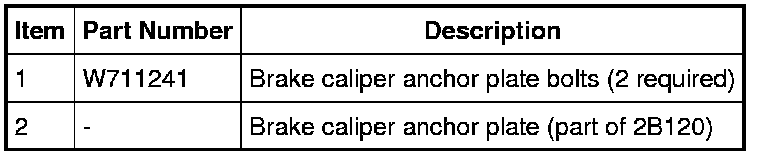

2. Remove the 2 brake caliper anchor plate bolts.
- To install, tighten to 90 Nm (66 lb-ft).

3. Remove the brake caliper anchor plate.

4. To install, reverse the removal procedure.
- Apply brakes several times to verify correct brake operation.
