Pinpoint Test Z: DTC B111D
Seats
Pinpoint Tests
Pinpoint Test Z: DTC B111D
Refer to Wiring Diagram Set 119, Climate Controlled Seats for schematic and connector information. Diagrams By Number
Normal Operation
Climate controlled seats are independently controlled by the Dual Climate Controlled Seat Module (DCSM) mounted to the bottom of the passenger seat cushion. The climate controlled seat system only operates with the engine running, however, if using a scan tool to command the DCSM, diagnostic testing can be carried out with the ignition Key ON Engine OFF (KOEO). The system receives voltage from Battery Junction Box (BJB) fuse 12 (30A) supplying battery voltage on circuit SBB12 (GN/RD) into DCSM C3305a pin F. The system also receives voltage from BJB fuse 11 (30A) supplying battery voltage on circuit SBB11 (BU/RD) into DCSM C3305a pin E. If voltage is disconnected from either pin E or F of DCSM C3305a with the voltage connection remaining on the other circuit, both seats will remain operational because the voltage supply circuits are connected internally in the DCSM. However, if a fault occurs setting a DTC specific to either climate controlled seat, only the affected seat will be disabled by the module and the other will remain operational.
The seat cushion is equipped with a Thermo-Electric Device (TED) assembly that includes a seat blower (fan motor, serviced as an assembly with the TED). Similarly, the seat backrest is also equipped with its own TED assembly with blower. Cabin air is drawn through the blower and distributed to each of the TED modules located in the seat cushion and backrest. The TEDs then heat or cool the air. The air is then directed into the foam pad and manifold where it is distributed along the surface of the cushion and backrest of the seat. Once the system is activated, the DCSM uses a set of flexible algorithms to control the heating/cooling modes and the blower speed dependant on the HVAC module seat switch settings.
- DTC B111D Passenger Blower Driver Overtemperature - If the DCSM outputs to the passenger seat blower or any components within these circuit loops are shorted to ground or cause an excessive current draw, the DCSM will overheat, shut down the passenger seat system and set this DTC.
This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- TED assembly
- DCSM
PINPOINT TEST Z: DTC B111D
NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition switch is ON.
NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
-------------------------------------------------
Z1 CHECK CIRCUIT CHS08 (BN/YE) FOR A SHORT TO GROUND
- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures portion of Air Bag Systems.
- Disconnect: Passenger Seat Side Air Bag C313.
- Disconnect: DCSM C3305c.
- Disconnect: Cushion TED C3303.
- Disconnect: Backrest TED C3311.

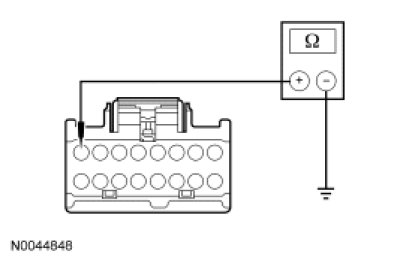

- Measure resistance between DCSM C3305c-8, circuit CHS08 (BN/YE), harness side and ground.
- Is resistance greater than 10,000 ohms?
Yes
GO to Z2.
No
REPAIR the circuit. REPEAT the self-test.
DISCONNECT the battery ground cable. CONNECT passenger seat side air bag module C313. REPOWER the SRS. REFER to Air Bag Systems.
-------------------------------------------------
Z2 CHECK FOR A SHORT BETWEEN CIRCUITS RHS08 (VT/WH) AND CHS08 (BN/YE)

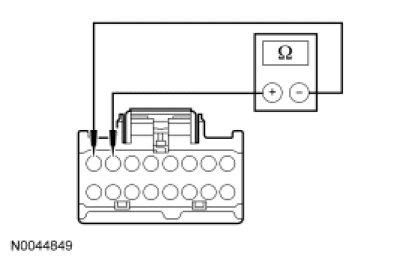

- Measure resistance between DCSM C3305c-7, circuit RHS08 (VT/WH), harness side and C3305c-8, circuit CHS08 (BN/YE), harness side.
- Is resistance greater than 10,000 ohms?
Yes
GO to Z3.
No
REPAIR the circuits. REPEAT the self-test. CLEAR the DTCs.
DISCONNECT the battery ground cable. CONNECT passenger seat side air bag module C313. REPOWER the SRS. REFER to Air Bag Systems.
-------------------------------------------------
Z3 CHECK BACKREST BLOWER AND CUSHION BLOWER RESISTANCES
- NOTE: The ohmmeter must be connected with the positive lead to pin 2 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected will result in false readings and lead to incorrect identification of components that are not faulty.
- Measure resistance between:
- cushion TED C3303 pin 2 and pin 4, component side.
- backrest TED C3311 pin 2 and pin 4, component side.
- Are resistances between 6K ohms and 9K ohms?
Yes
INSTALL a new DCSM and CARRY OUT Programmable Module Installation (PMI). REFER to Dual Climate Controlled Seat Module (DCSM) Dual Climate Controlled Seat Module (DCSM). REPEAT the self-test. CLEAR the DTCs.
No
If cushion TED resistance is not between 6,000 and 9,000 ohms, INSTALL a new cushion TED. REFER to Seat Cushion Thermo-Electric Device Seat Cushion Thermo-Electric Device. REPEAT the self-test. CLEAR the DTCs.
If backrest TED resistance is not between 6,000 and 9,000 ohms, INSTALL a new backrest TED. REFER to Seat Backrest Thermo-Electric Device Seat Backrest Thermo-Electric Device. REPEAT the self-test. CLEAR the DTCs.
DISCONNECT the battery ground cable. CONNECT passenger seat side air bag module C313. REPOWER the SRS. REFER to Air Bag Systems.
-------------------------------------------------
