Home >> Mercury >> 2009 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Driver Seat Module (DSM) DTC Chart

Driver Seat Module (DSM) DTC Chart




Seats

DTC Charts

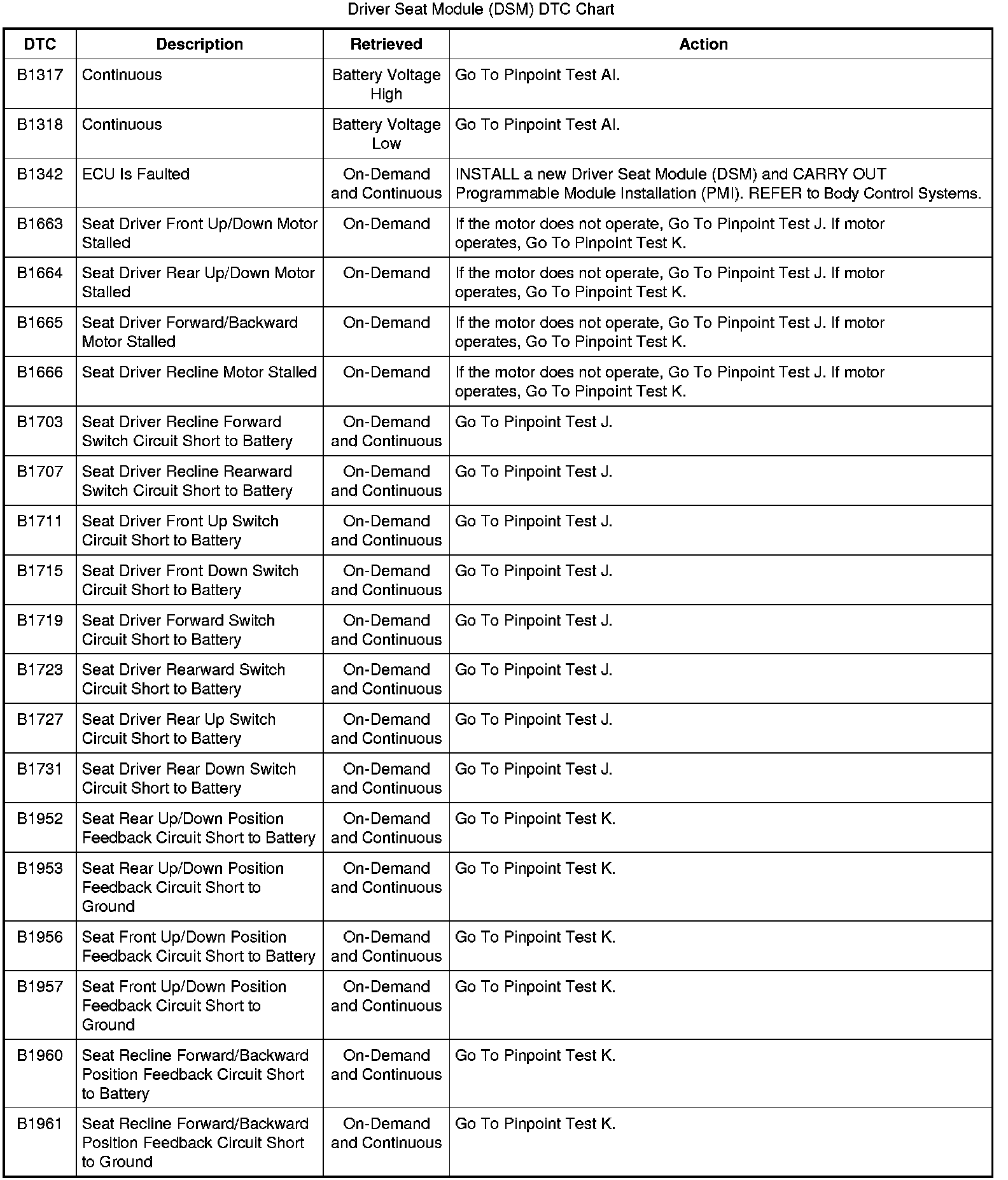

B1317-B1961:

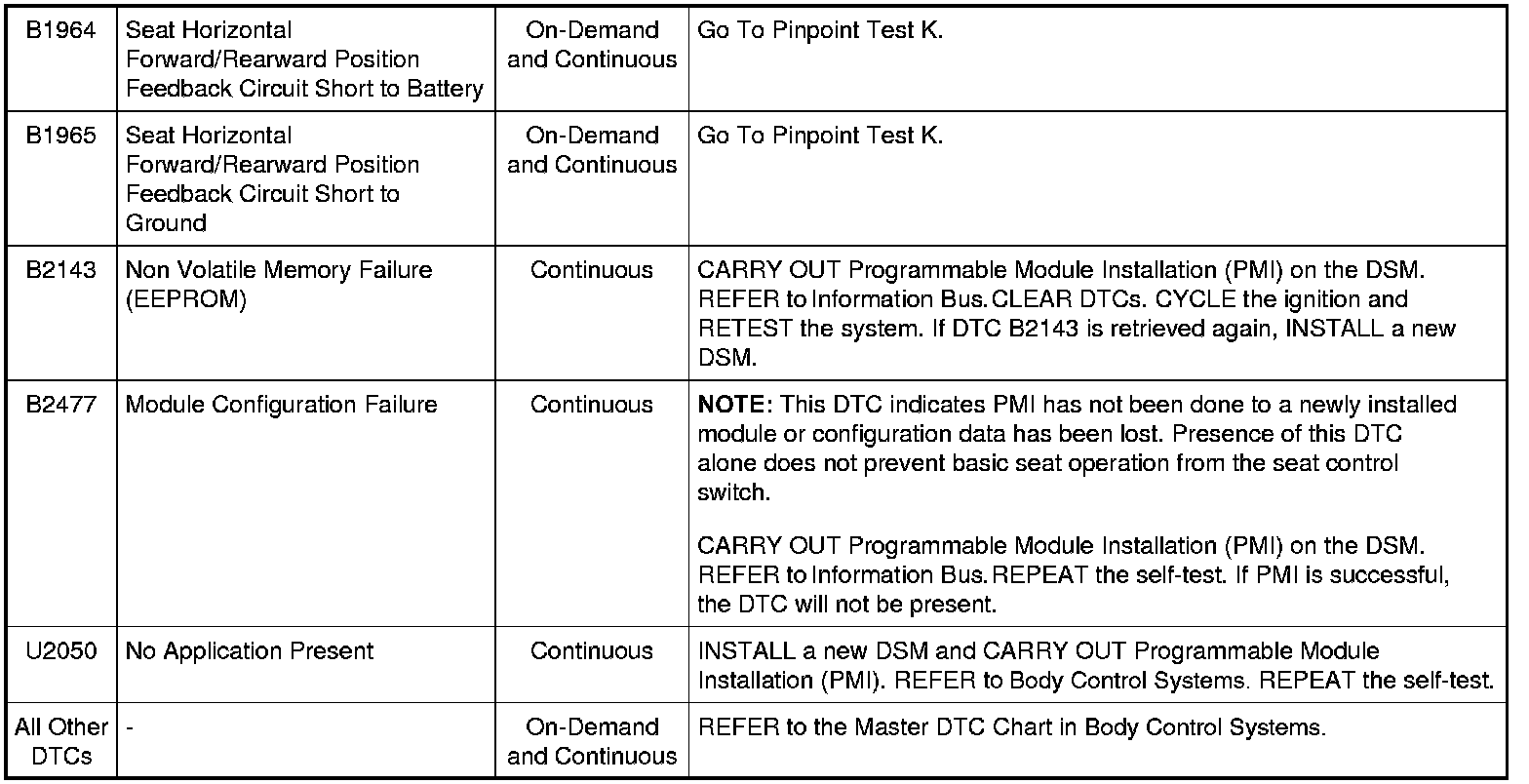

B1964-B2477 / U2050:
