Home >> Mercury >> 2009 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Mechanical Symptom Chart

Mechanical Symptom Chart




Locks, Latches and Entry Systems







Symptom Chart

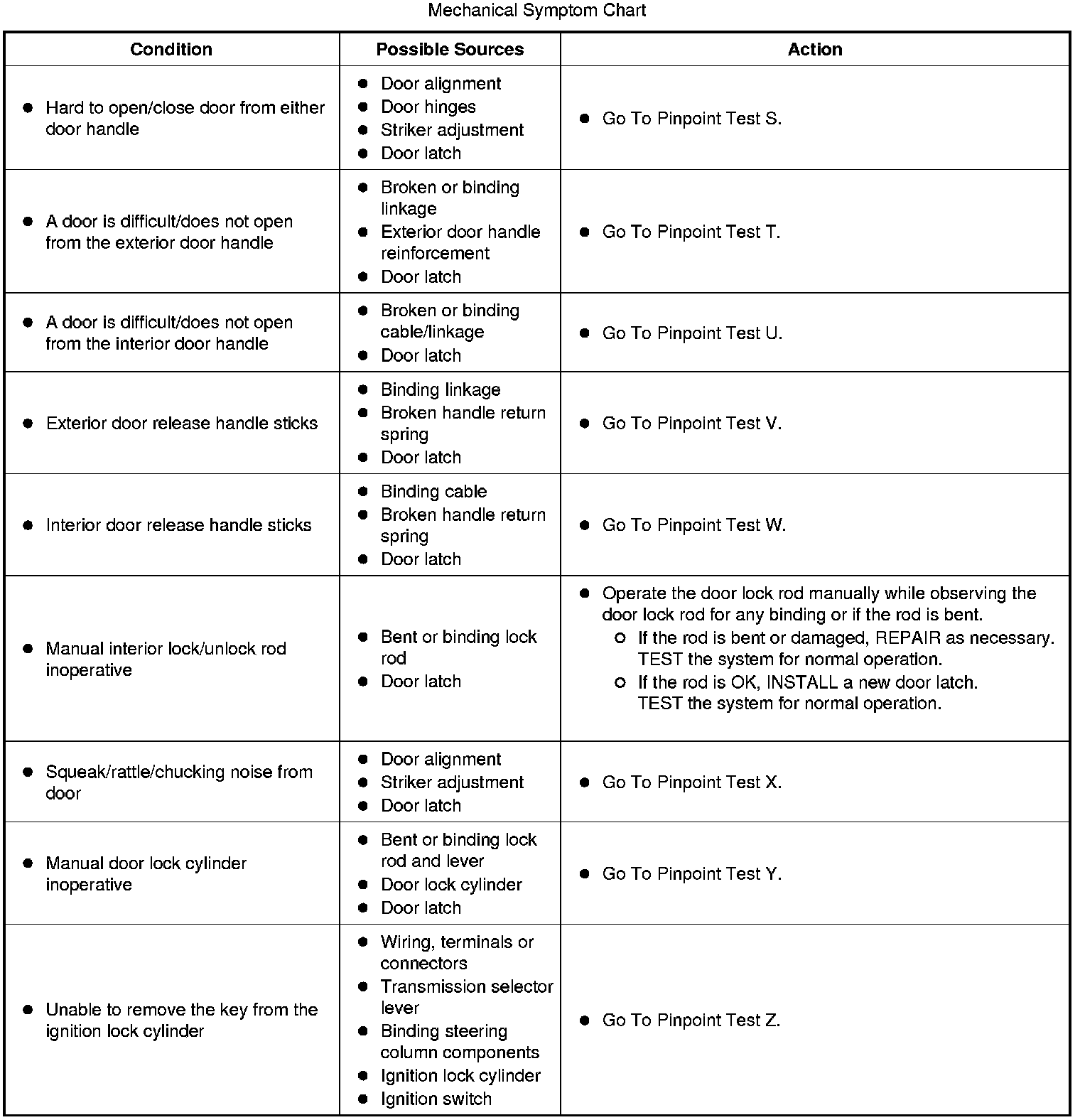

Mechanical Symptom Chart:
