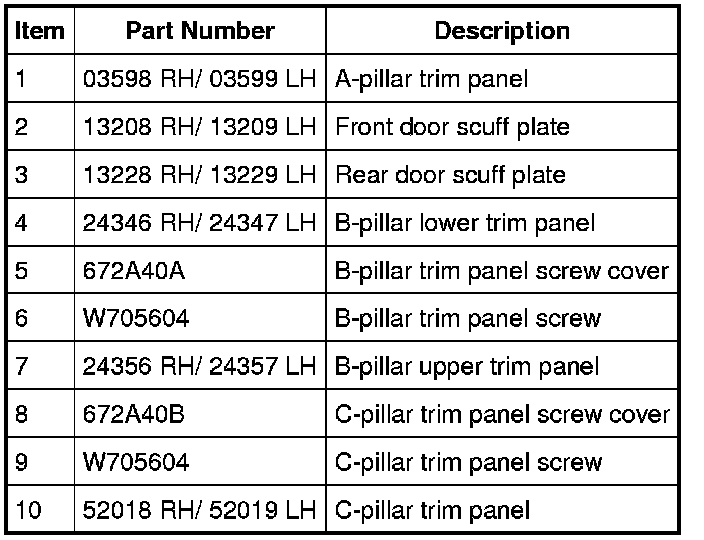

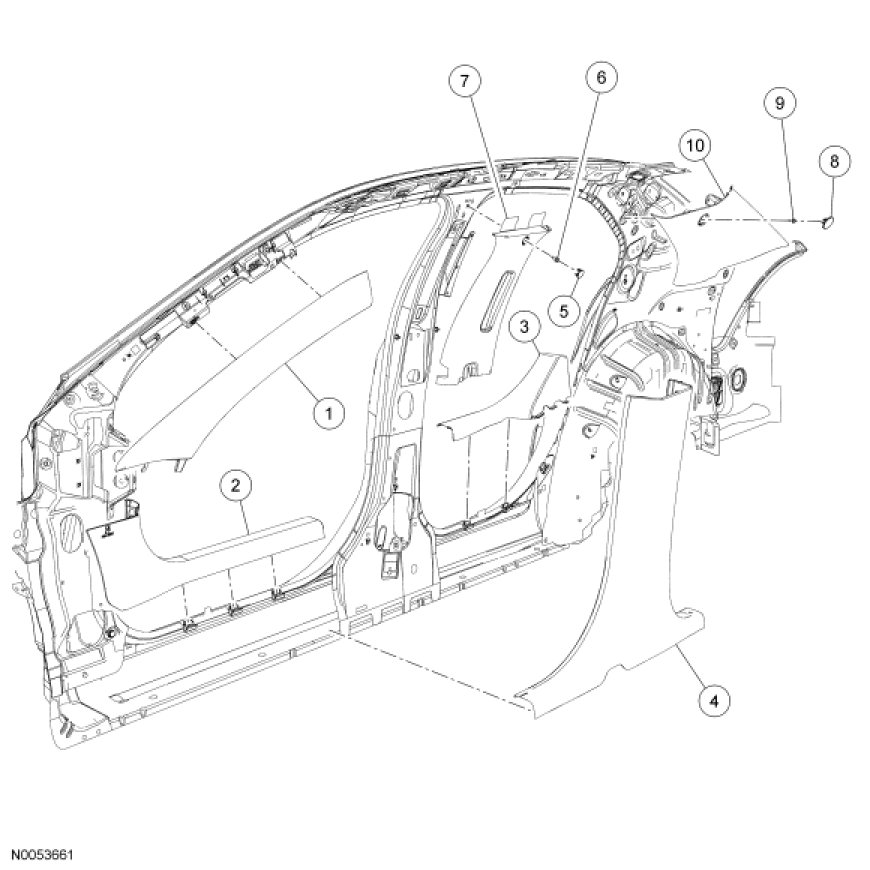

Interior Trim - Exploded View




Interior Trim - Exploded View

NOTE: Fusion shown, Milan and MKZ similar.










1. For additional information, refer to the procedures.
