Headliner: Service and Repair

Headliner

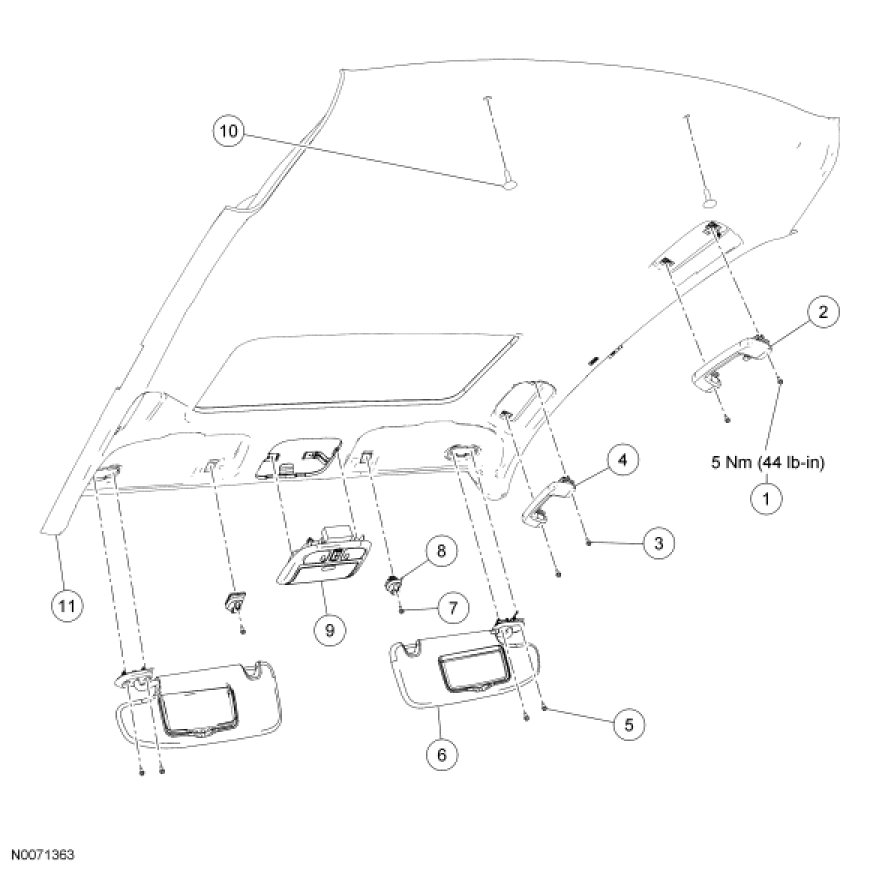

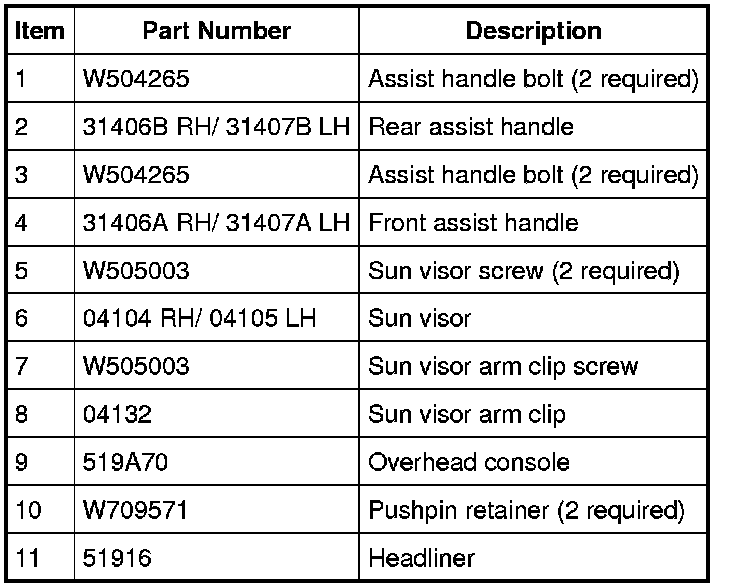

NOTE: Headliner with moonroof shown, headliner without moonroof similar.










Removal and Installation

1. Remove the driver seat and rear seat cushion.

2. Position the passenger seat fully rearward and recline fully.

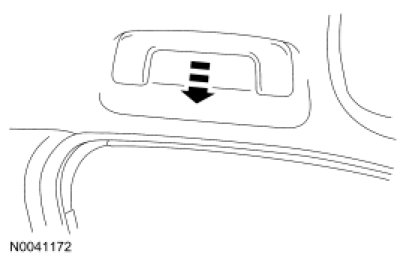

3. Open the 4 passenger assist handle covers.
- Remove the bolts and remove the handles.
- To install, tighten to 5 Nm (44 lb-in).





4. Remove the A-pillar trim panels. For additional information, refer to A-Pillar Trim Panel A-Pillar Trim Panel.

5. Disconnect the wire harness connector and the 2 pushpins.

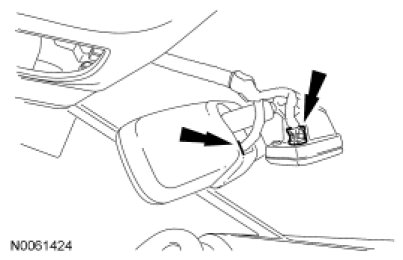

6. If equipped, disconnect the automatic dimming rear view mirror electrical connectors.





7. Remove the B-pillar trim panels. For additional information, refer to B-Pillar Trim Panel B-Pillar Trim Panel.

8. Remove the C-pillar trim panels. For additional information, refer to C-Pillar Trim Panel C-Pillar Trim Panel.

9. Remove the overhead console.
- Disconnect the electrical connector.

10. Remove the sun visors and the sun visor clips.
- If equipped, disconnect the electrical connectors.

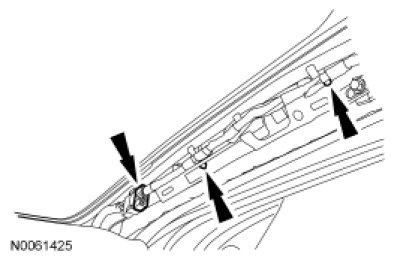

11. Remove the 2 headliner pushpin retainers at the rear.

12. If equipped, position the headliner forward to gain access to disconnect the roof opening panel motor electrical connector.

13. NOTICE: To avoid bending or crimping the headliner, an assistant is required for this step.

Remove the headliner through the LH rear door.

14. To install, reverse the removal procedure.
