Instrument Panel Finish Panel - Center

Instrument Panel Finish Panel - Center

Removal and Installation

Fusion, Milan

1. Using a suitable tool, gently pry out the upper center instrument panel finish panel to disengage the clips.

2. Remove the upper center instrument panel finish panel.
- Disconnect the electrical connectors.

3. Using a suitable tool, gently pry out the lower center instrument panel finish panel to disengage the clips.

4. Remove the lower center instrument panel finish panel.
- Disconnect the electrical connectors.

MKZ

5. Remove the floor console finish panel.

6. Remove the lower center instrument panel finish panel screw beneath the ash tray and the lower center instrument panel finish panel.
- Disconnect the electrical connectors.

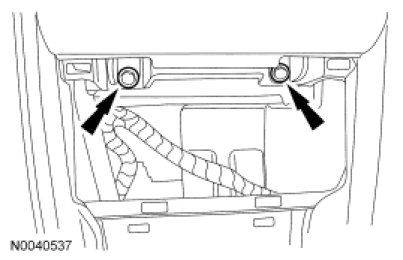

7. Remove the 2 upper center instrument panel finish panel lower screws.





8. Remove both center instrument panel registers.

9. Working through the center instrument panel register openings, remove the 2 upper center instrument panel finish panel upper screws.

10. Remove the upper center instrument panel finish panel.
- Disconnect the electrical connectors.

All vehicles

11. To install, reverse removal procedure.
