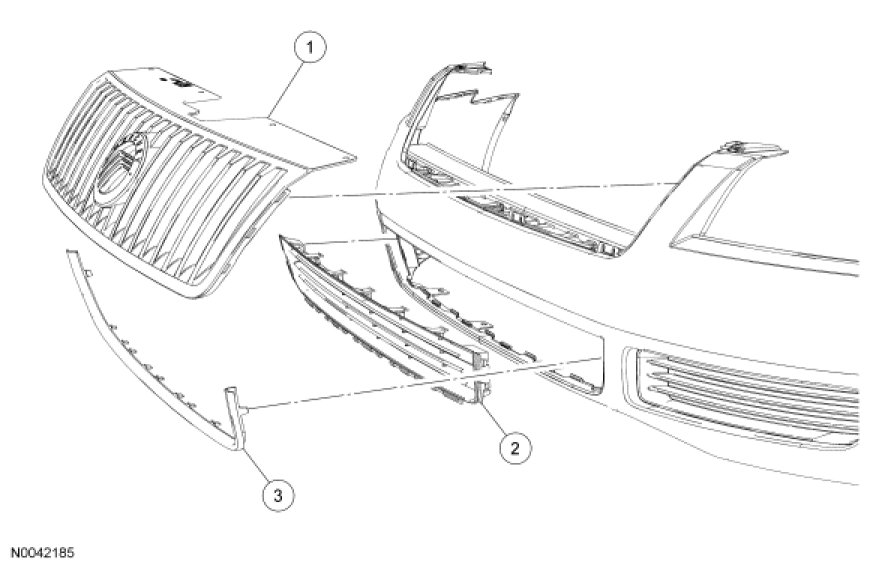

Radiator Grille - Milan

Radiator Grille - Milan









1. Remove the front bumper cover.

2. Remove the upper radiator grille from the clips on the bumper cover.

3. Remove the lower radiator grille outer trim cover from the clips on the bumper cover.

4. Remove the lower radiator grille from the clips on the bumper cover.

5. To install, reverse the removal procedure.
