Front Door Limiter: Service and Repair

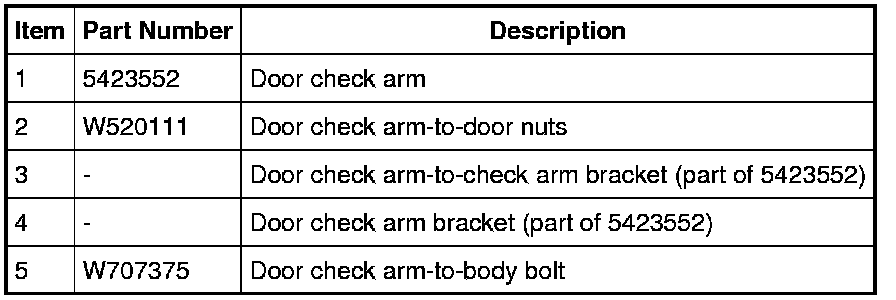

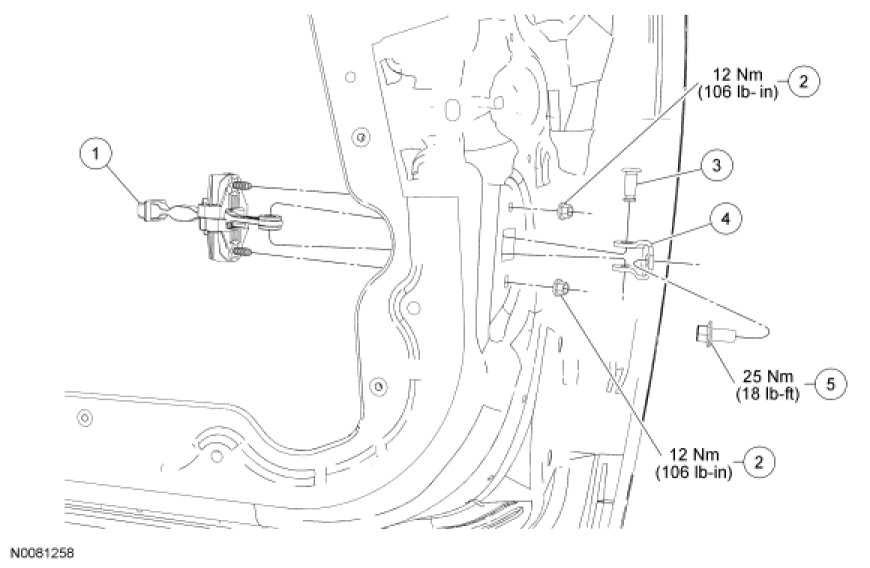

Door Check Arm









1. Remove the door trim panel.

2. Remove the door check arm-to-body bolt.
- To install, tighten to 25 Nm (18 lb-ft).

3. Remove the door check arm-to-door nuts.
- To install, tighten to 12 Nm (106 lb-in).

4. To install, reverse the removal procedure.
