Bumper - Exploded View, Rear

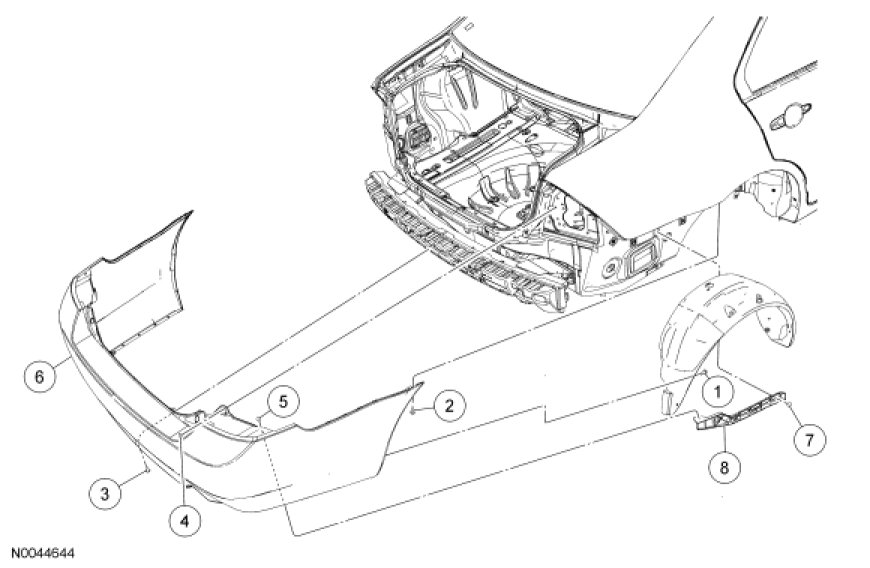

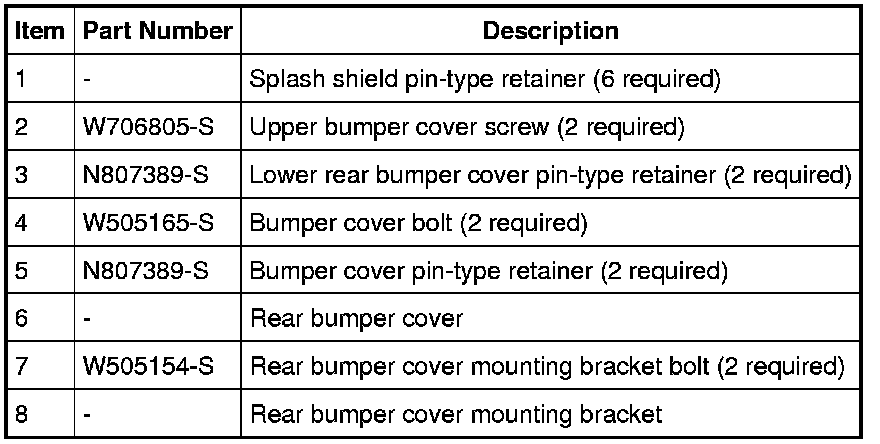

Bumper - Exploded View, Rear

NOTE: Fusion shown, Milan and MKZ similar.

1. For additional information, refer to the procedures.
