Principles of Operation

Parking Aid

Principles of Operation

NOTE: The Smart Junction Box (SJB) is also known as the Generic Electronic Module (GEM).

The parking aid sensors detect objects approximately 1.6 m (5.3 ft) from the rear of the vehicle, 50 cm (1.6 ft) from the rear side of the vehicle, and 16 cm (6 in) above the ground. The Parking Aid Module (PAM) calculates the distance to an object within the 170 degree semicircular azimuth area around the rear of the vehicle. A variable warning tone is generated from a parking aid speaker. The parking aid speaker increases its warning tone rate as the vehicle gets closer to an obstacle. When an object is detected within 25 cm (10 in) of the sensors, the warning tone becomes continuous.

The parking aid system is enabled when the ignition switch is in the RUN position and the REVERSE (R) gear is selected. The parking aid system is disabled if a fault is detected in 1 of the 4 sensors, the parking aid speaker, or the PAM. This is indicated by the parking aid disabled warning in the message center.

The PAM is on the Medium Speed Controller Area Network (MS-CAN) and can be diagnosed with a scan tool. The PAM communicates with the scan tool, the SJB, the Audio Control Module (ACM) and the Instrument Cluster (IC). The following chart describes network messages used by the PAM:

NOTE: Both the MS-CAN and the High Speed Controller Area Network (HS-CAN) are used for intermodule communication. A gateway message is transferred from one network to another network through the IC. Refer to Information Bus for network communication information.

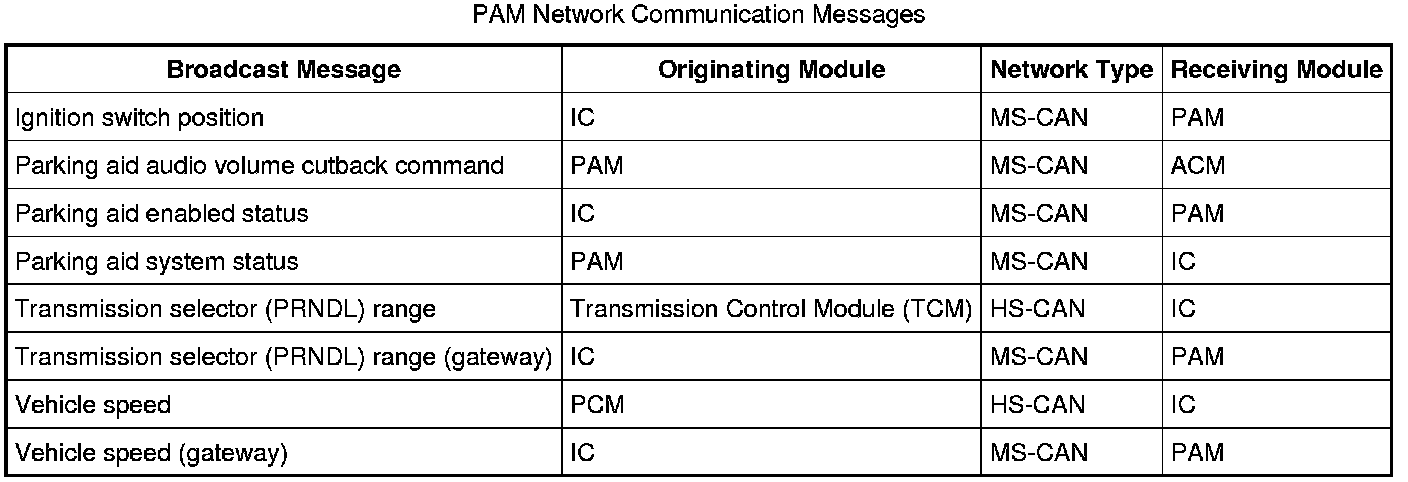

PAM Network Communication Messages:
