Home >> Mercury >> 2009 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0505

P0505

Note: Refer to the applicable vehicle system to diagnose the body and chassis DTCs.

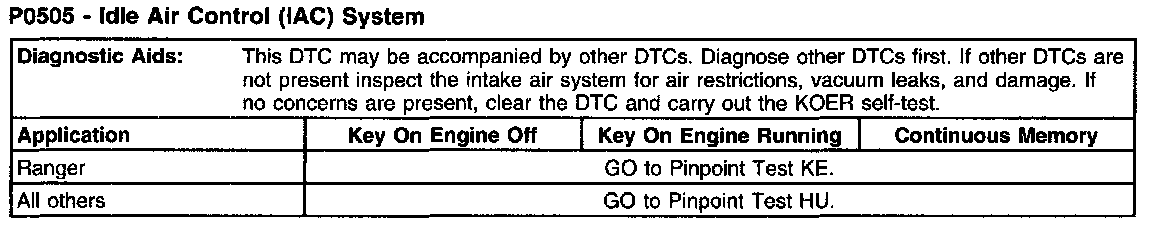

P0505 - Idle Air Control (IAC) Valve (Part 1):

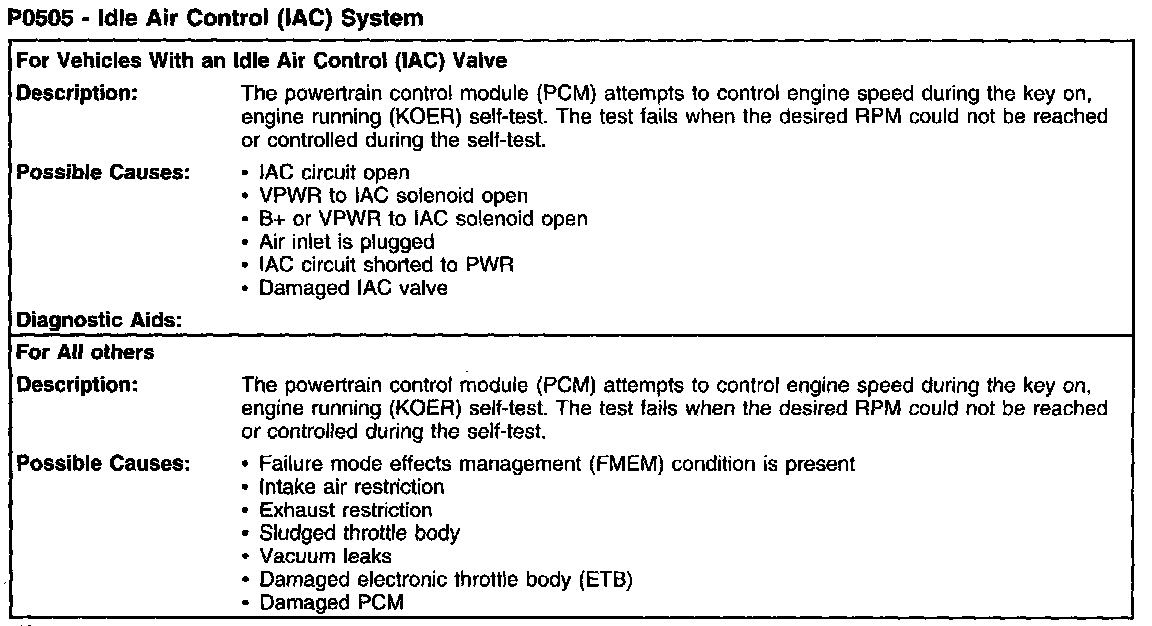

P0505 - Idle Air Control (IAC) Valve (Part 2):
