P0603
P0603
Note:
Refer to the applicable vehicle system to diagnose the body and chassis DTCs.

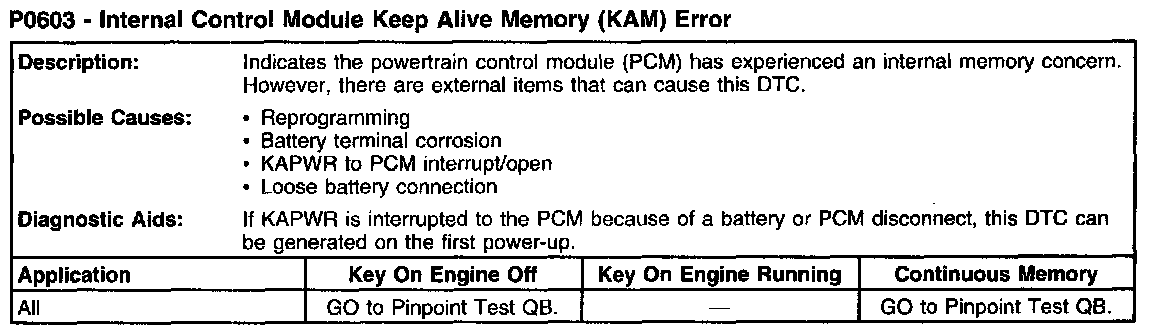

P0603 - Internal Control Module Keep Alive (KAM) Error:
