Transaxle Cooling - Aisin AW21
>>
Symptom Chart - Transaxle Cooling
Symptom Chart - Transaxle Cooling
Transaxle Cooling - Aisin AW21

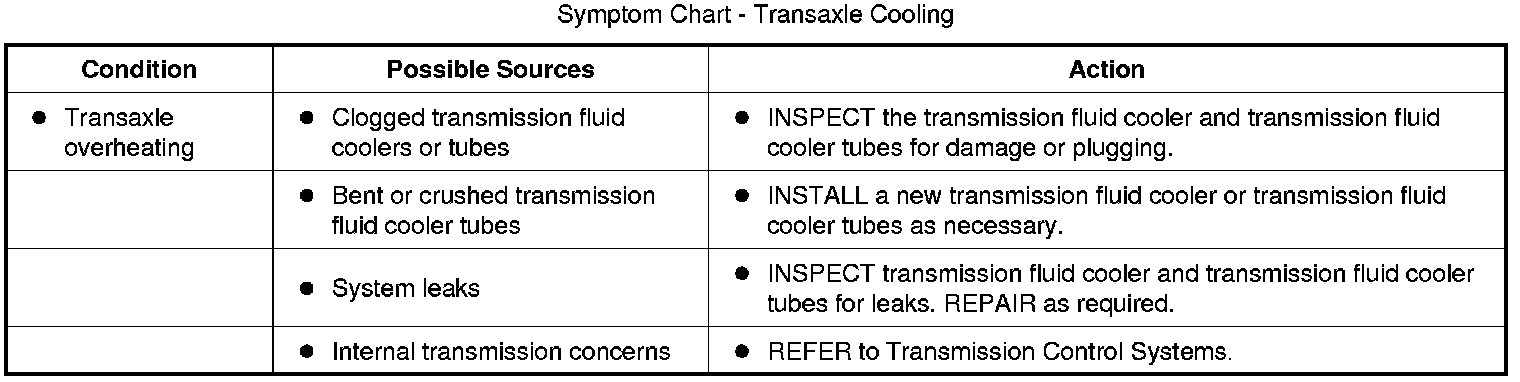

Symptom Chart - Transaxle Cooling
Symptom Chart - Transaxle Cooling:
