Electrical Connectors




External Controls

Electrical Connectors

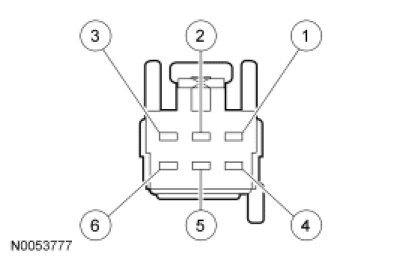

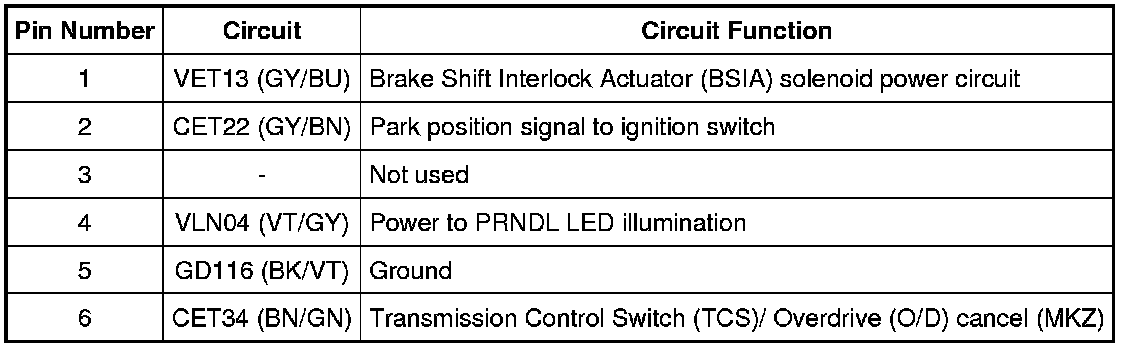

Selector Lever Harness C3245 (3.0L Engine)

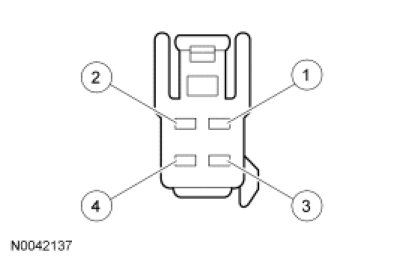

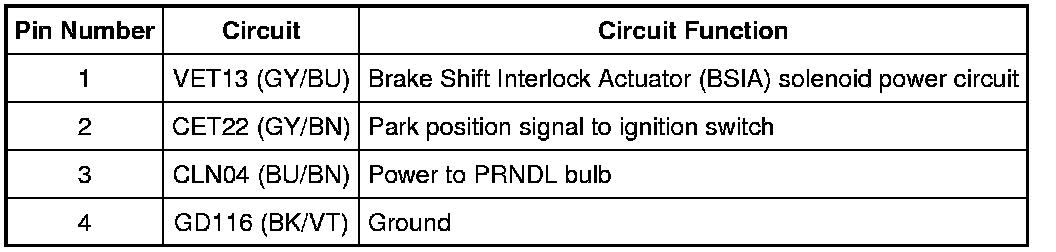

Selector Lever Harness C3233 (3.5L Engine)
