Home >> Mercury >> 2009 >> Milan AWD L4-2.3L >> Repair and Diagnosis >> Powertrain Management >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Ignition System >> Knock Sensor >> Diagrams >> Knock Sensor

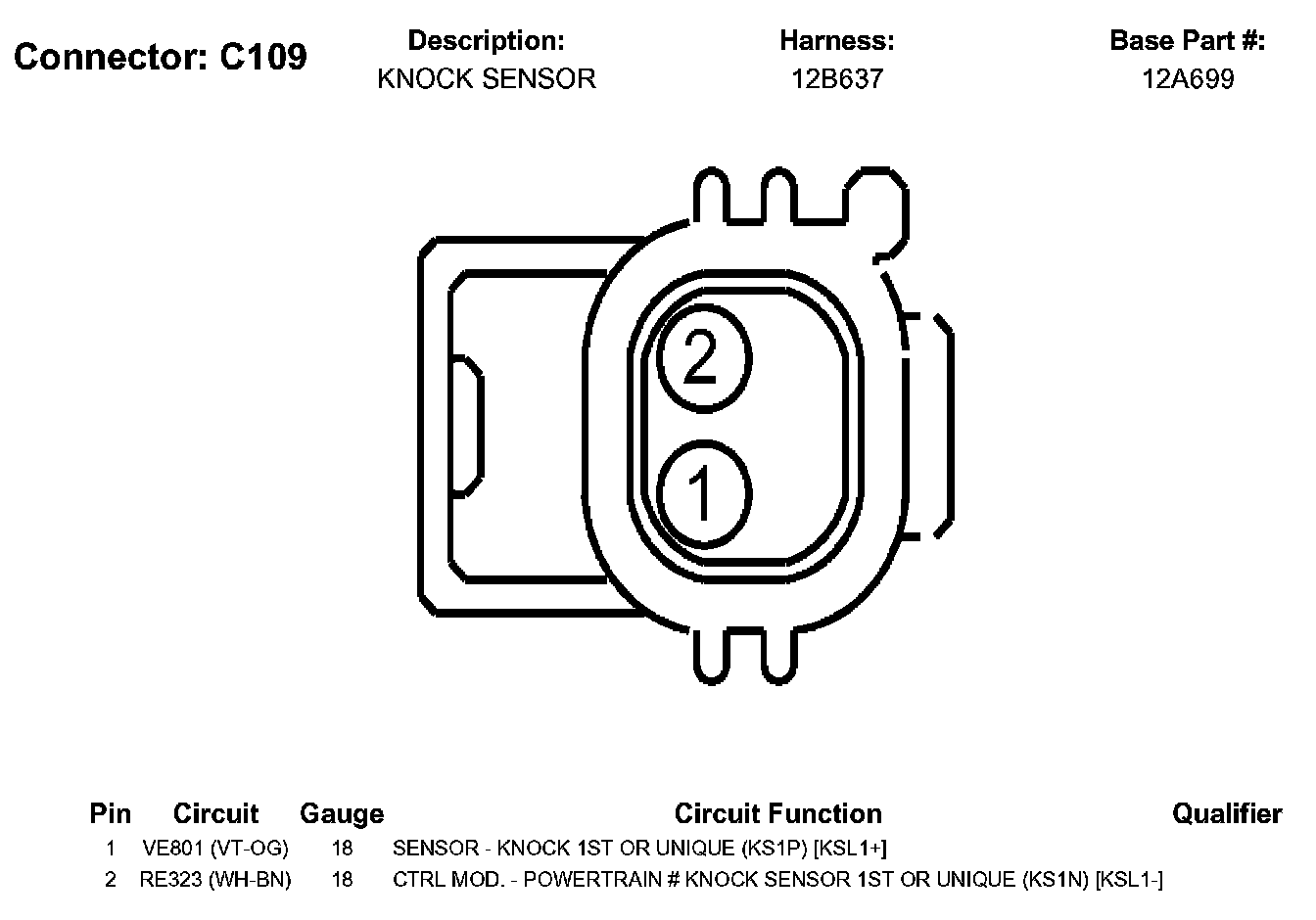

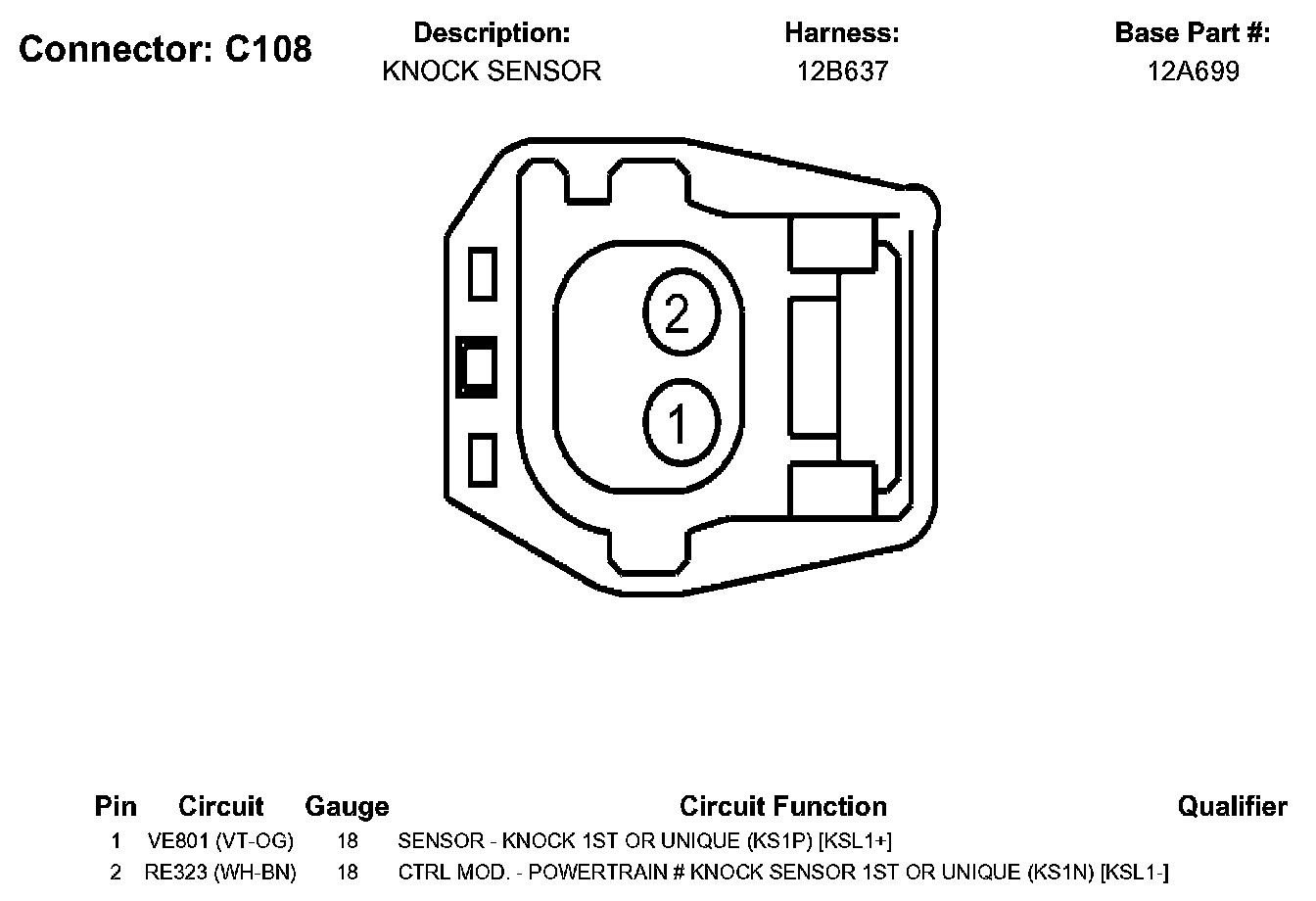

Knock Sensor
