Positive Crankcase Ventilation (PCV) Valve

Positive Crankcase Ventilation (PCV) Valve

Removal and Installation

1. Remove the intake manifold.

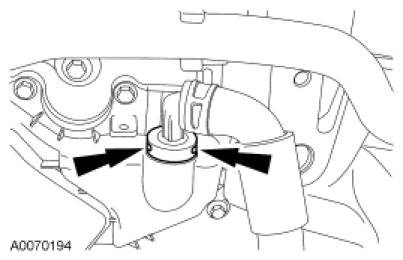

2. Depress the 2 tabs and remove the PCV valve from the crankcase vent oil separator.





3. Release the clamp and remove the crankcase ventilation tube.

4. To install, reverse the removal procedure.
