Valve Tappets

Valve Tappets





Removal and Installation

NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the camshafts. For additional information, refer to Camshafts Camshafts.

3. NOTE: If the camshafts and valve tappets are to be reused, mark the location of the valve tappets to make sure they are assembled in their original positions.

NOTE: The number on the valve tappets only reflects the digits that follow the decimal. For example, a tappet with the number 0.650 has the thickness of 3.650 mm.

Remove and inspect the valve tappets.

4. To install, reverse the removal procedure.

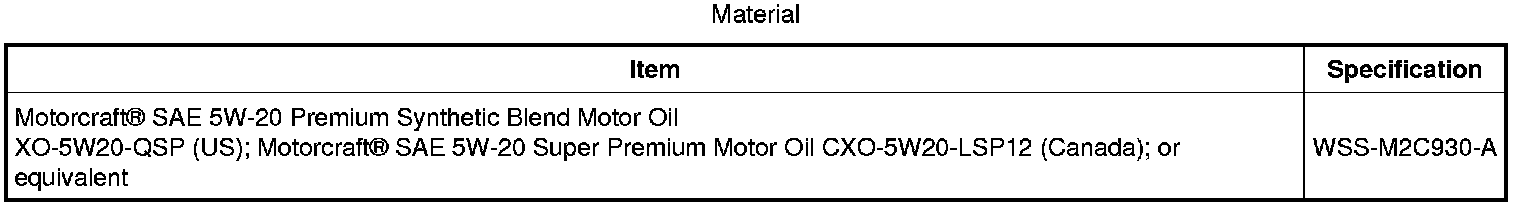

- Coat the valve tappets with clean engine oil prior to installation.
