Global Positioning System Antenna: Service and Repair

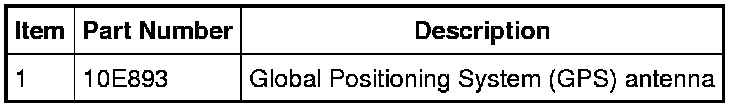

Global Positioning System (GPS) Antenna

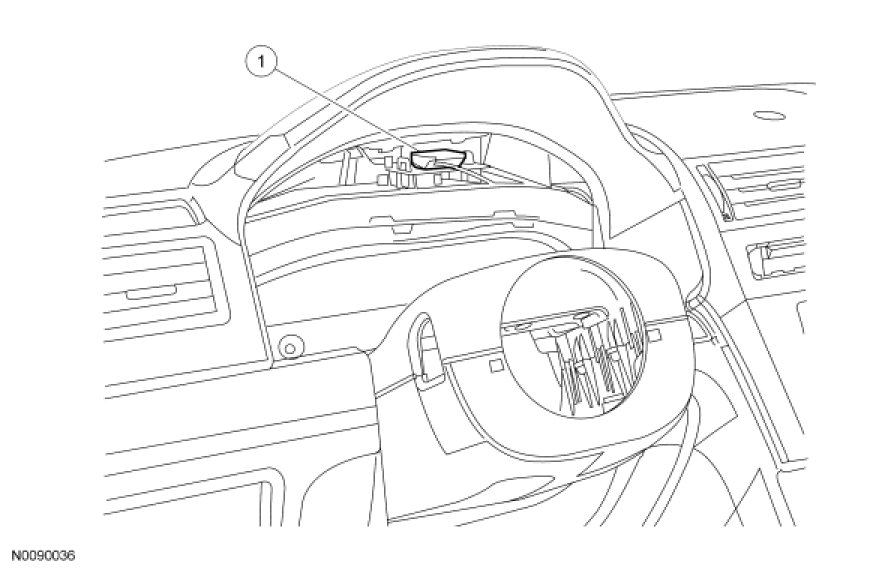

NOTE: Steering wheel shown removed for clarity.










Removal and Installation

1. Remove the Audio Control Module (ACM). For additional information, refer to Audio Control Module (ACM) - Fusion, Milan Audio Control Module (ACM) - Fusion, Milan or Audio Control Module (ACM) - MKZ .

2. Remove the Instrument Cluster (IC).

3. Release the clip and remove the GPS antenna.

4. To install, reverse the removal procedure.
