Wiper and Washer Systems: Service and Repair

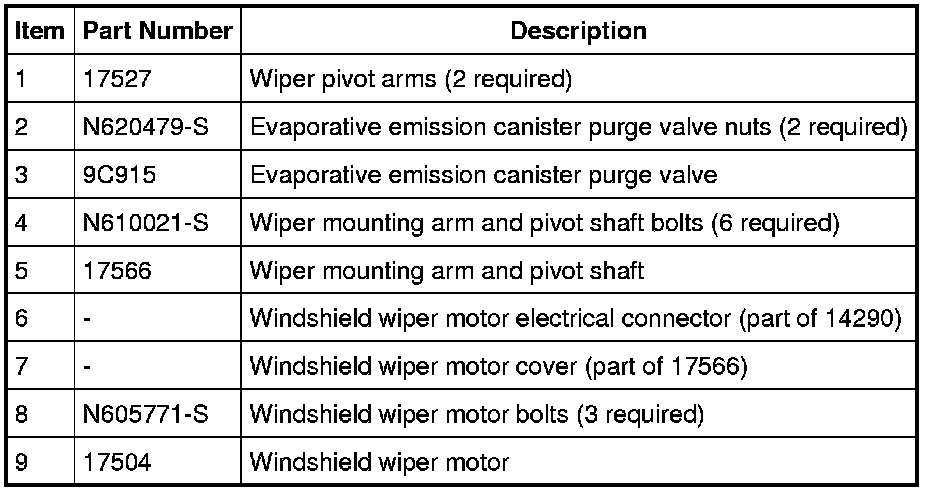

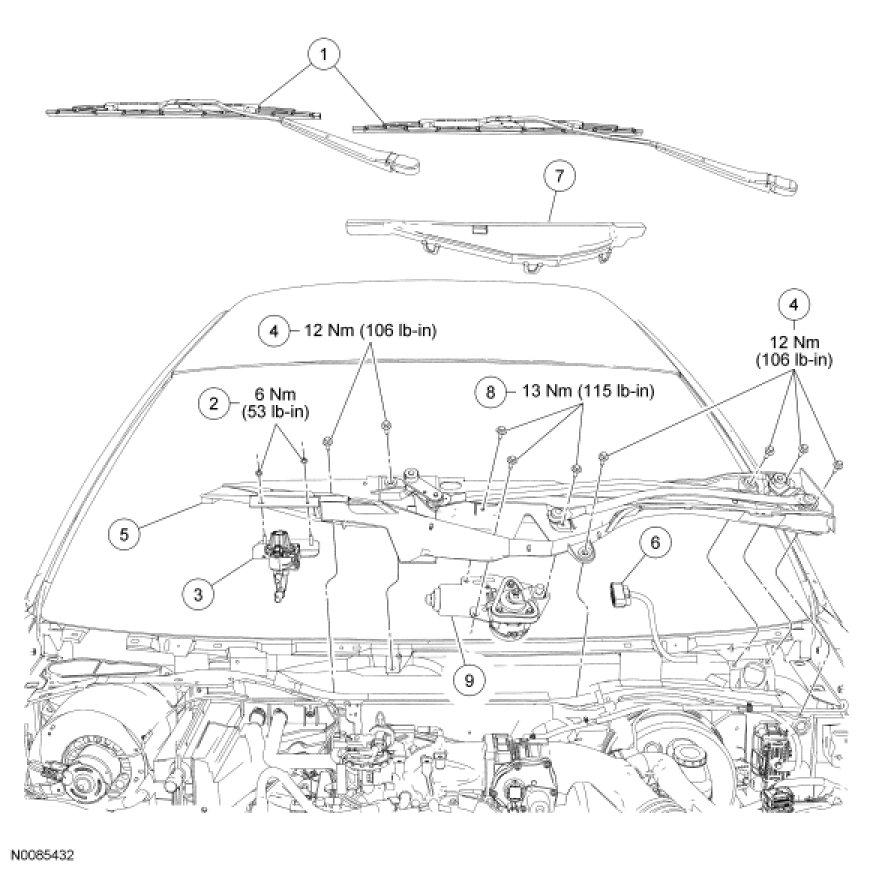

Wiper and Washer System - Exploded View
1.
For additional information, refer to the procedures.
