Window Glass - Rear Door

Window Glass - Rear Door





Removal and Installation

1. Remove the rear door trim panel.

2. Position the watershields aside.

3. Remove the 3 rivets and position the rear door latch remote control aside.





4. Remove the inner belt line moulding.

5. Remove the nut and outer belt line moulding.
- To install, tighten to 12 Nm (106 lb-in).

6. Remove the rear door glass top run inner bolt.
- To install, tighten to 10 Nm (89 lb-in).

7. Connect the window control switch electrical connectors.

8. Lower the rear door window glass to gain access to the rivets.

9. NOTICE: Do not attempt to forcibly remove the rivets as damage to the rear door window glass may result. Prior to removing the rivet center pins, it is necessary to place a suitable block support between the door outer panel and the rear door window channel bracket to stabilize the rear door window glass during rivet removal.

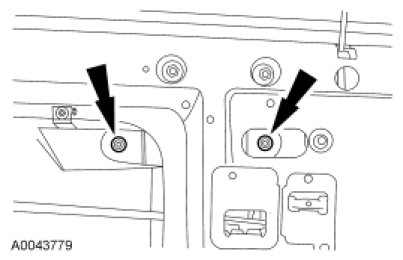

Remove the 2 rear door window regulator rivets.





10. Remove the rear door glass top run outer bolt.
- To install, tighten to 12 Nm (106 lb-in).

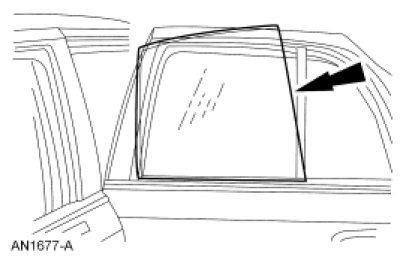

11. Remove the rear door window glass.





12. NOTE: If necessary, align the rear door window glass with the rear door window channel bracket.

To install, reverse the removal procedure.

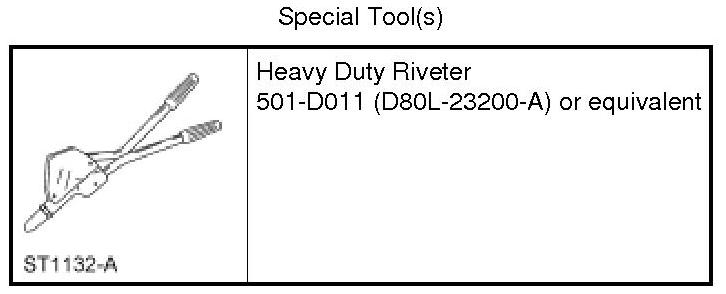

- Using the Heavy Duty Riveter, install 2 spacers and two 1/4 inch rivets (use of 1/4 - 20 x 1 inch screw and washer assemblies and 1/4 inch - 20 nut and washer are optional). Tighten the nut (if used) to 13 Nm (115 lb-in).
