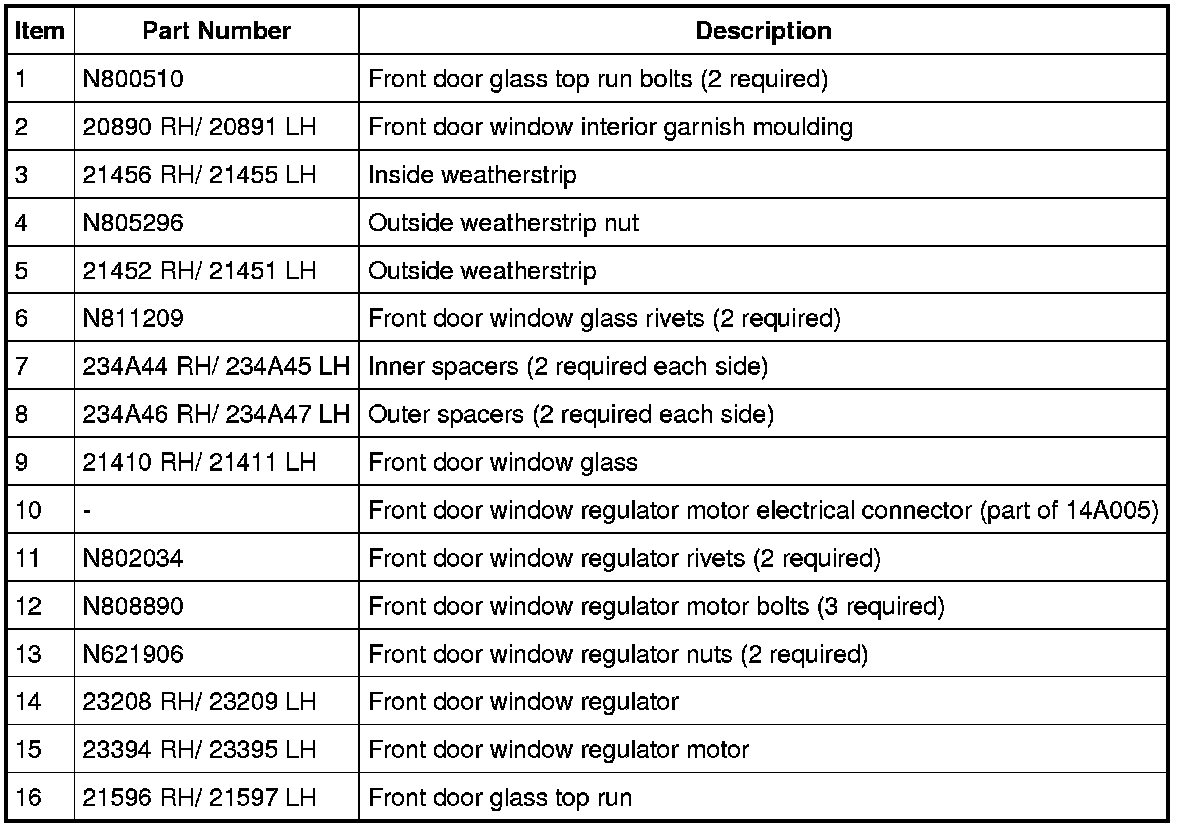

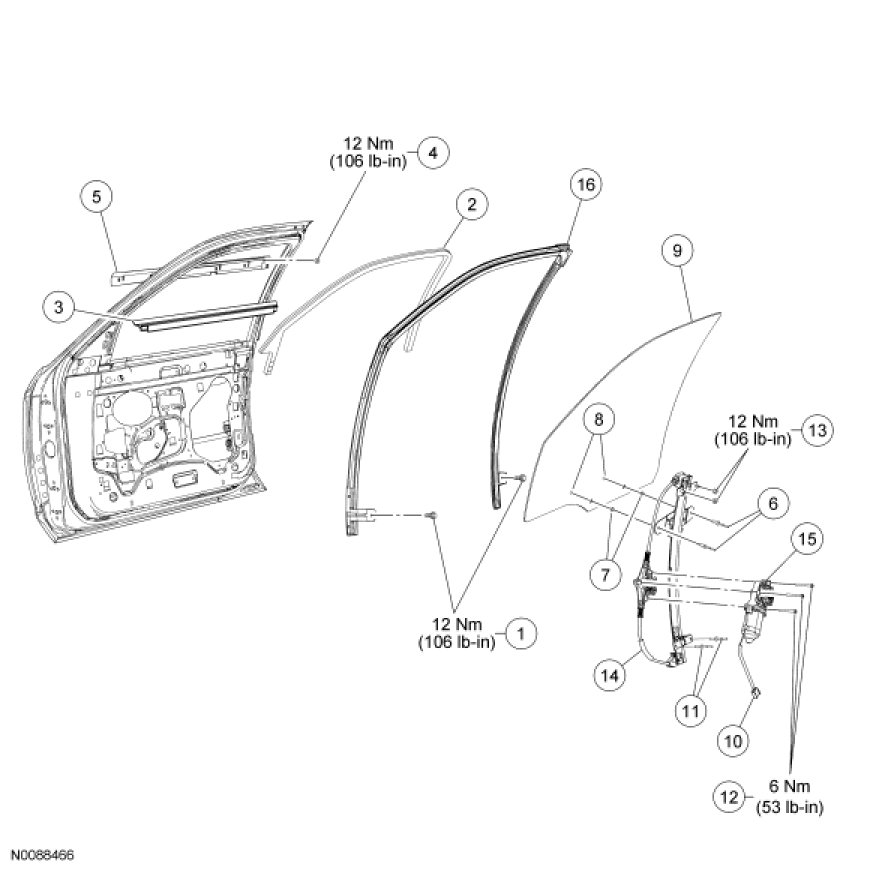

Glass, Frames and Mechanisms - Exploded View, Front Door

Glass, Frames and Mechanisms - Exploded View, Front Door

NOTE: RH front door shown, LH front door similar.










1. For additional information, refer to the procedures.
