Turbine Shaft Speed (TSS) Sensor




4R70E/4R75E

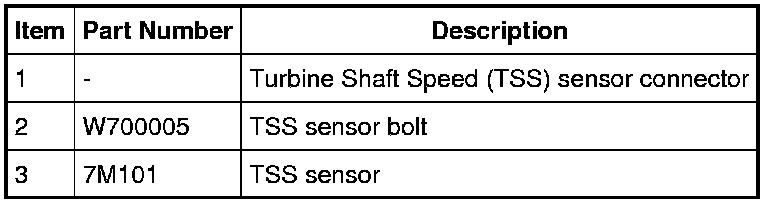

Turbine Shaft Speed (TSS) Sensor

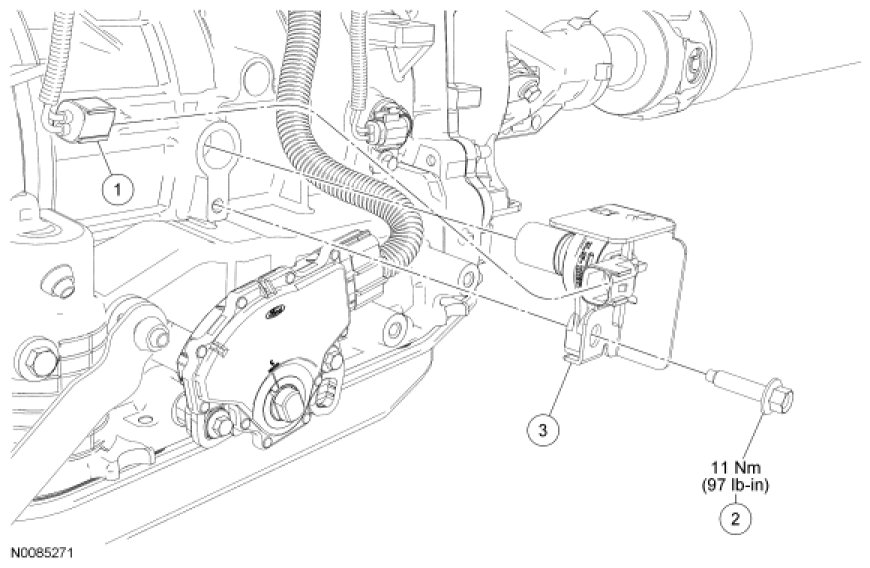

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Disconnect the Turbine Shaft Speed (TSS) sensor connector.

3. Remove the TSS sensor bolt and the sensor.
- To install, tighten to 11 Nm (97 lb-in).

4. To install, reverse the removal procedure.
