Output Shaft Speed (OSS) Sensor




4R70E/4R75E

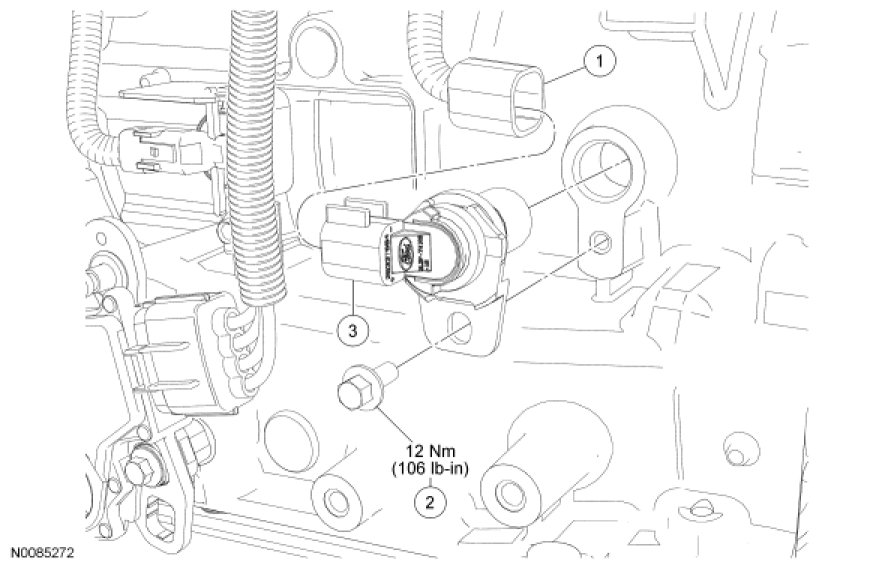

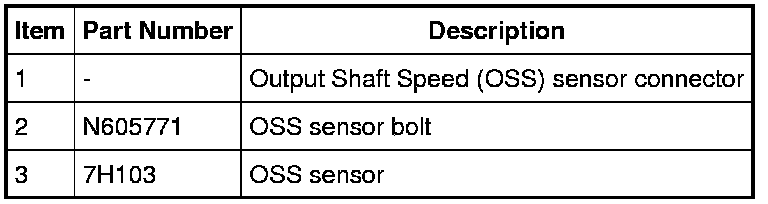

Output Shaft Speed (OSS) Sensor









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Disconnect the Output Shaft Speed (OSS) sensor connector.

3. Remove the OSS sensor bolt and the sensor.
- To install, tighten to 12 Nm (106 lb-in).

4. To install, reverse the removal procedure.
