Home >> Mercury >> 2009 >> Grand Marquis V8-4.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Sensors and Switches - Transmission and Drivetrain >> Sensors and Switches - A/T >> Transmission Speed Sensor >> Diagrams >> Output Shaft Speed (OSS) Sensor

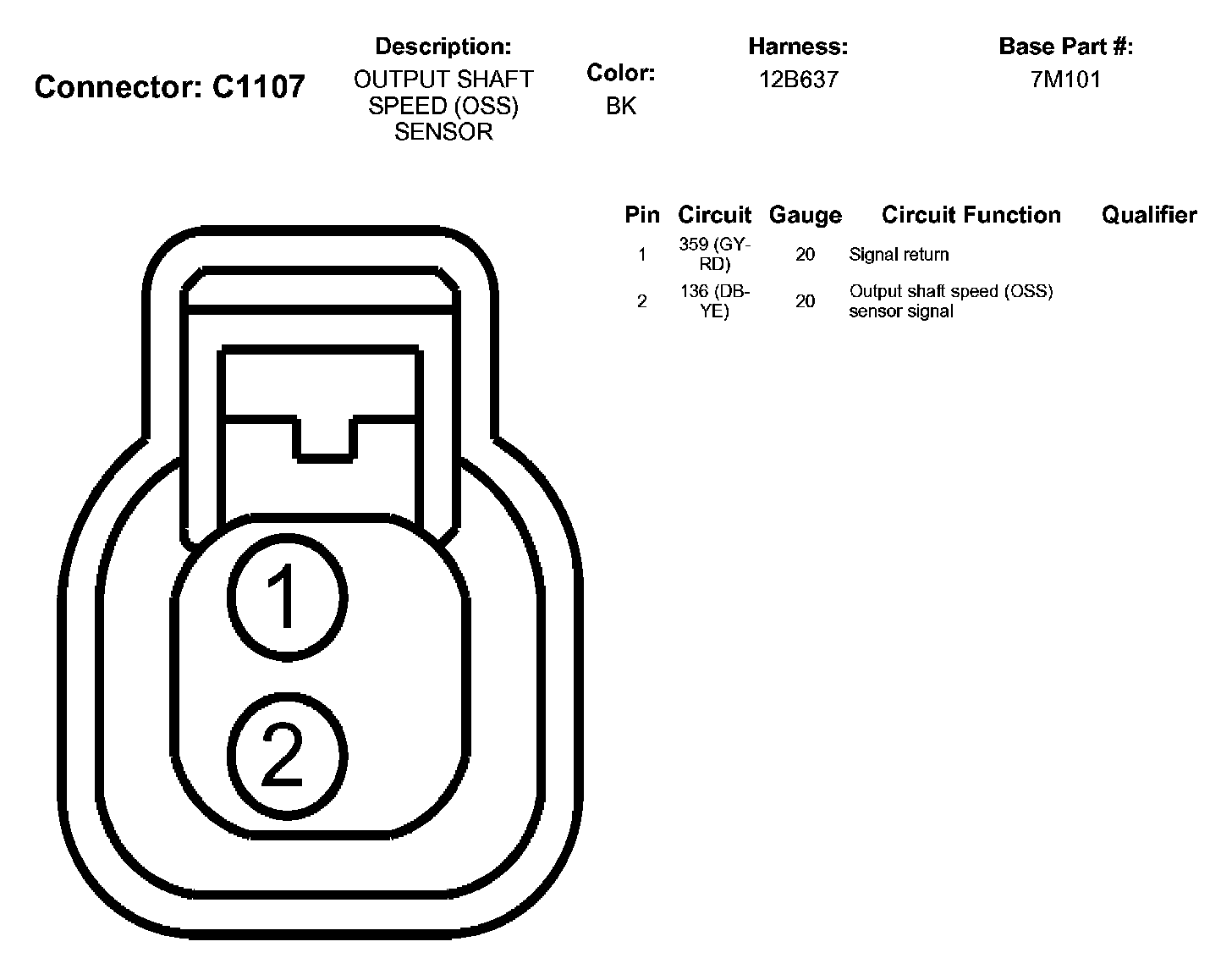

Output Shaft Speed (OSS) Sensor
