Shift Concerns 210/310 - 225/325
>>
222/322, 3-4 Shift (Automatic)
222/322, 3-4 Shift (Automatic)
4R70E/4R75E
Diagnostic Routines

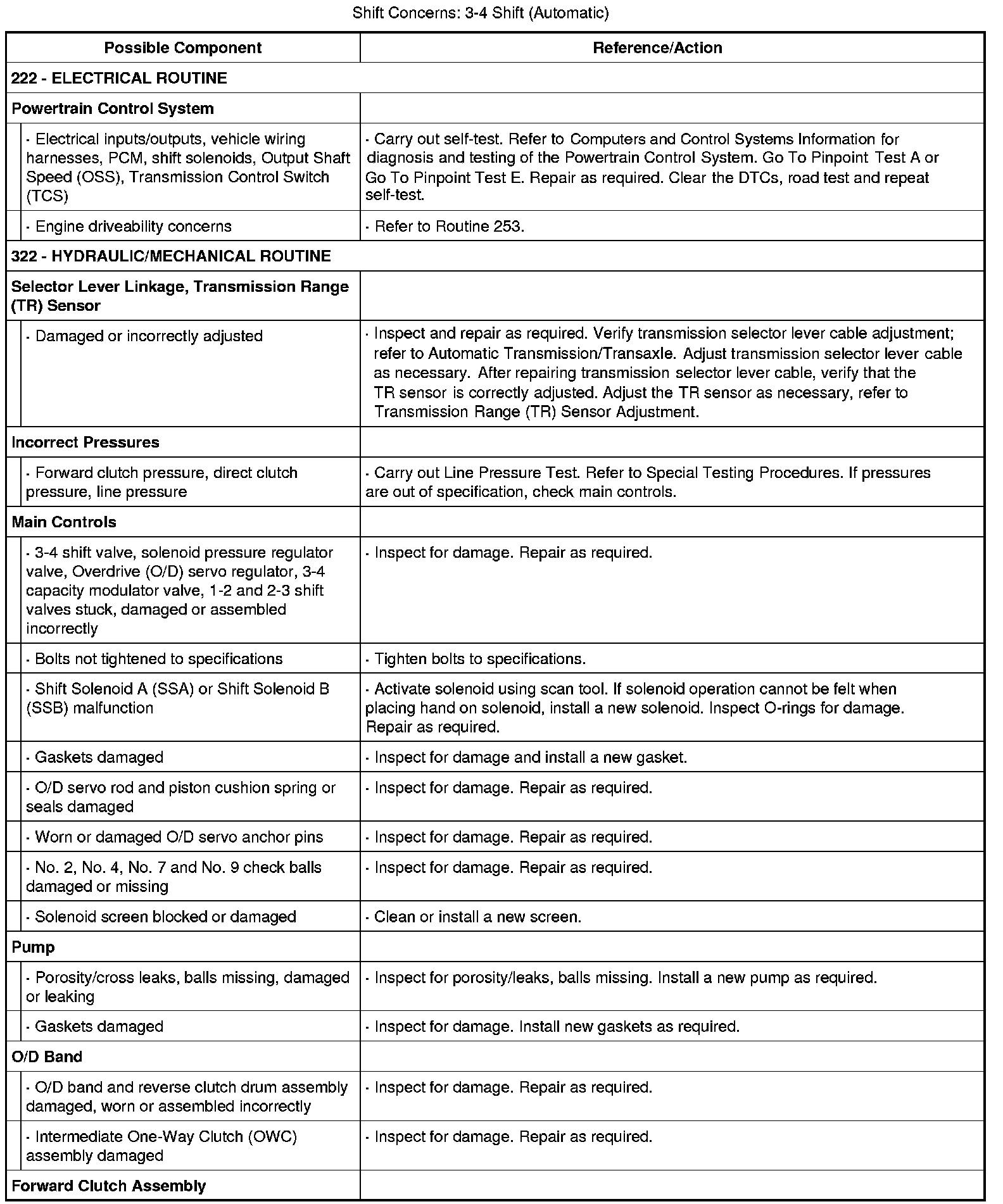

Shift Concerns: 3-4 Shift (Automatic) (Part 1):

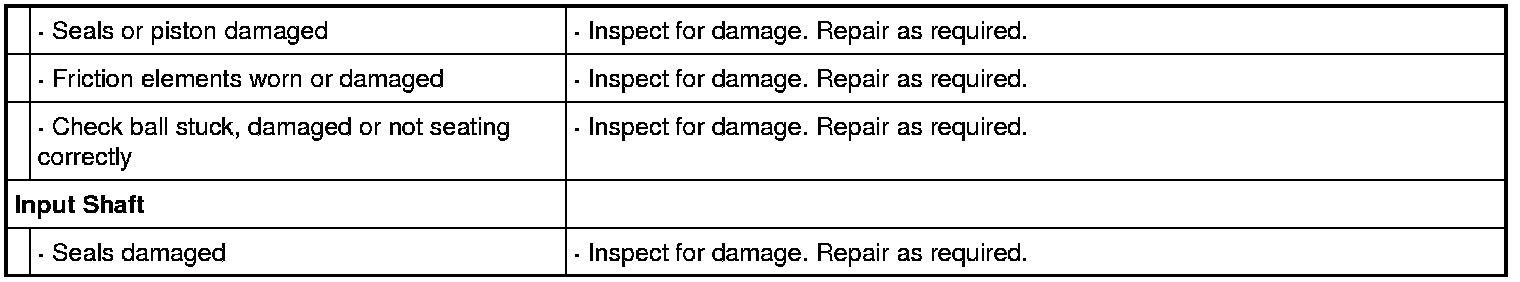

Shift Concerns: 3-4 Shift (Automatic) (Part 2):
