Mercury
>>
2009
>>
Grand Marquis V8-4.6L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnostic Routines
>>
Engagement Concerns 201/301 - 207/307
>>
205/305, Delayed/Soft Reverse
205/305, Delayed/Soft Reverse
4R70E/4R75E
Diagnostic Routines

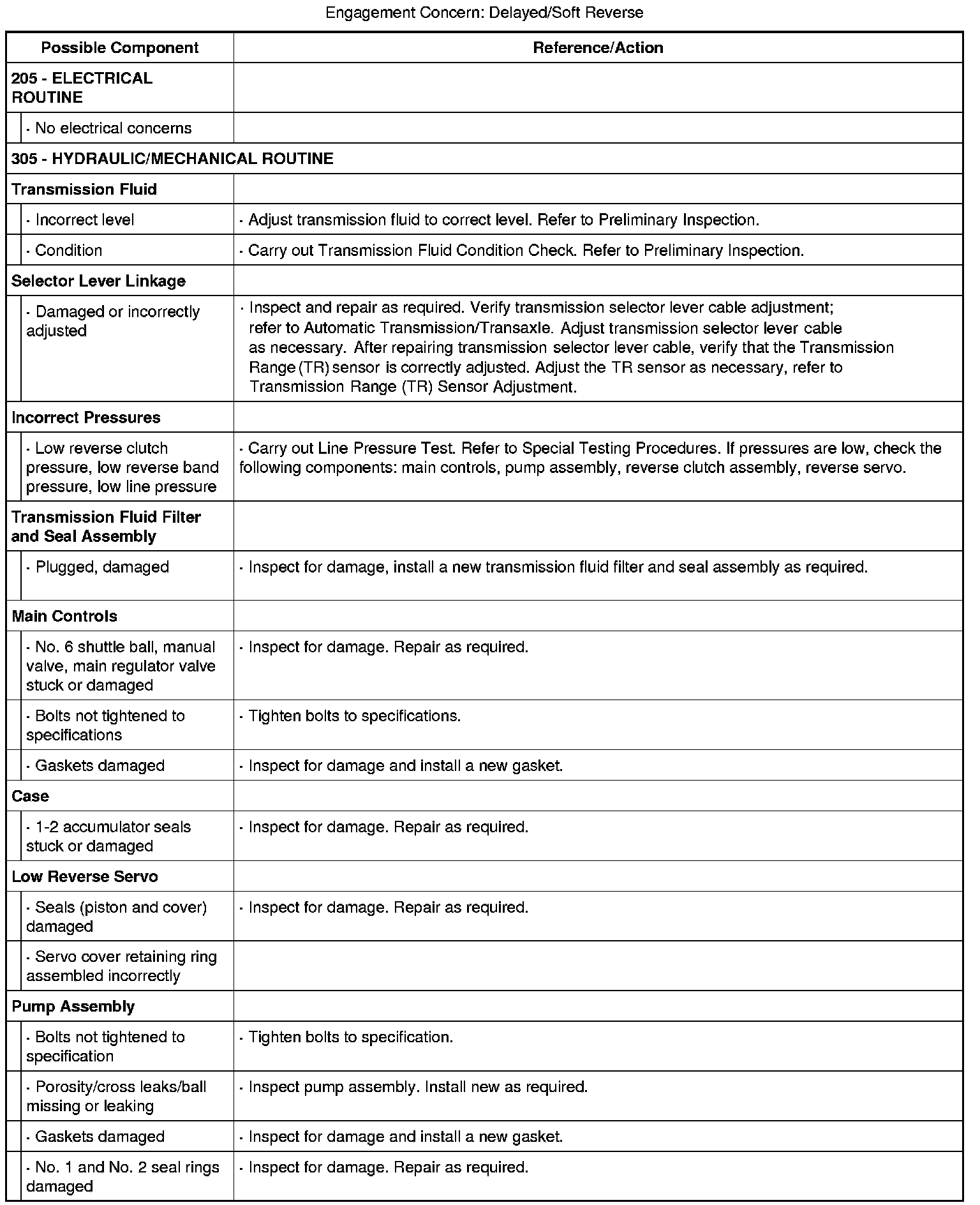

Engagement Concern: Delayed/Soft Reverse (Part 1):

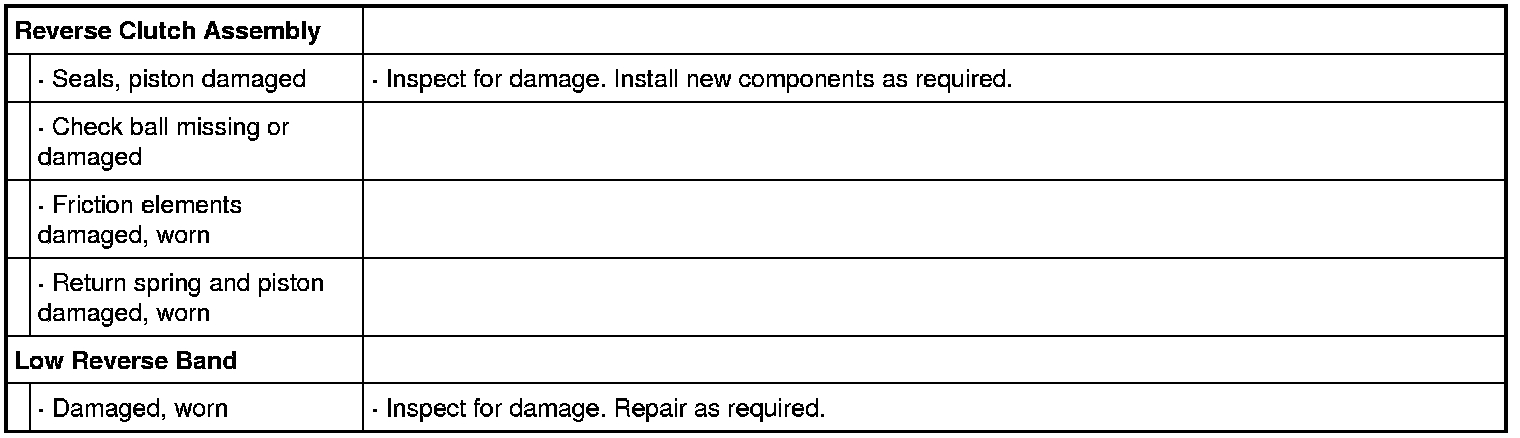

Engagement Concern: Delayed/Soft Reverse (Part 2):
