Engagement Concerns 201/301 - 207/307
>>
202/302, No Reverse
202/302, No Reverse
4R70E/4R75E
Diagnostic Routines

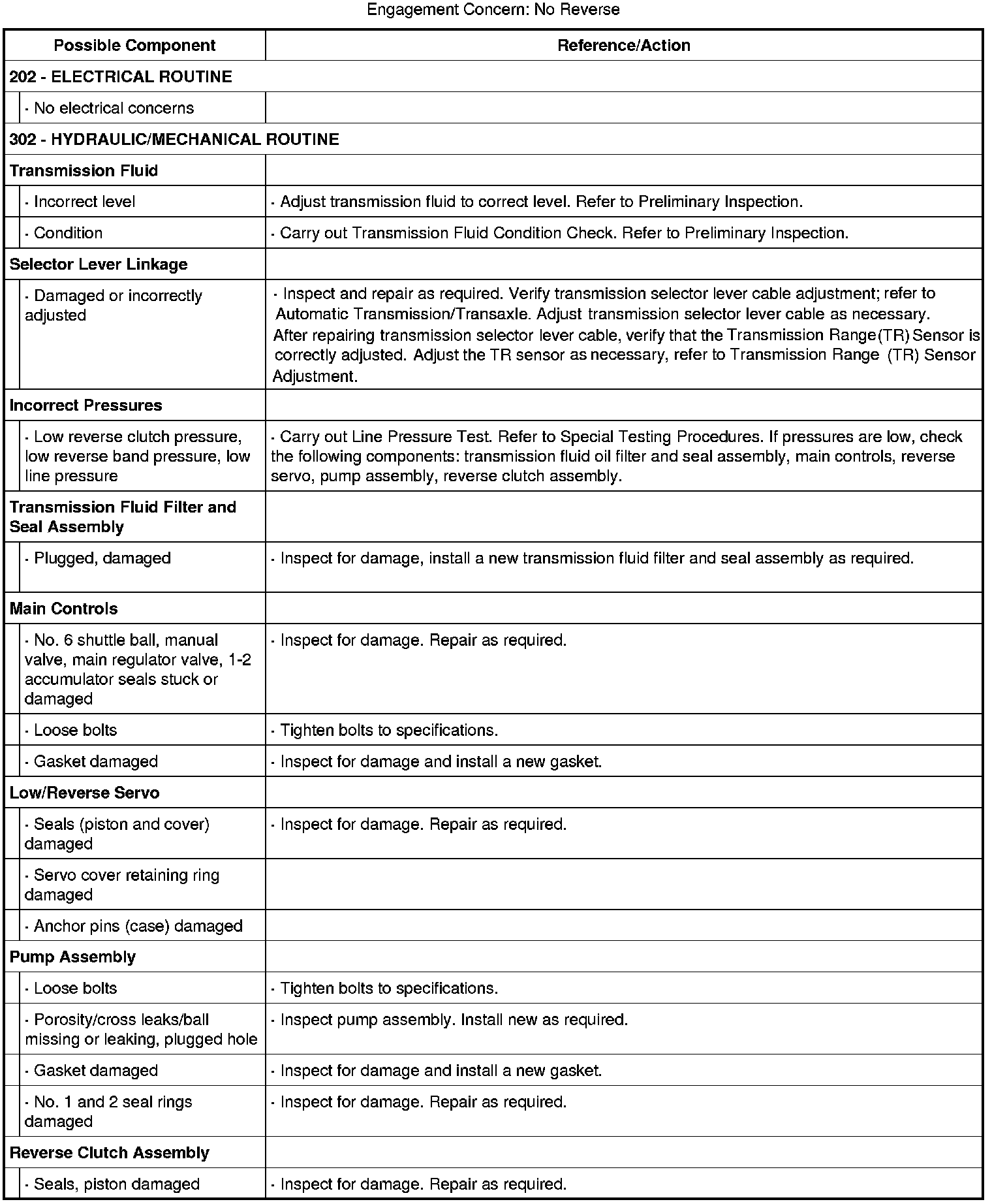

Engagement Concern: No Reverse (Part 1):

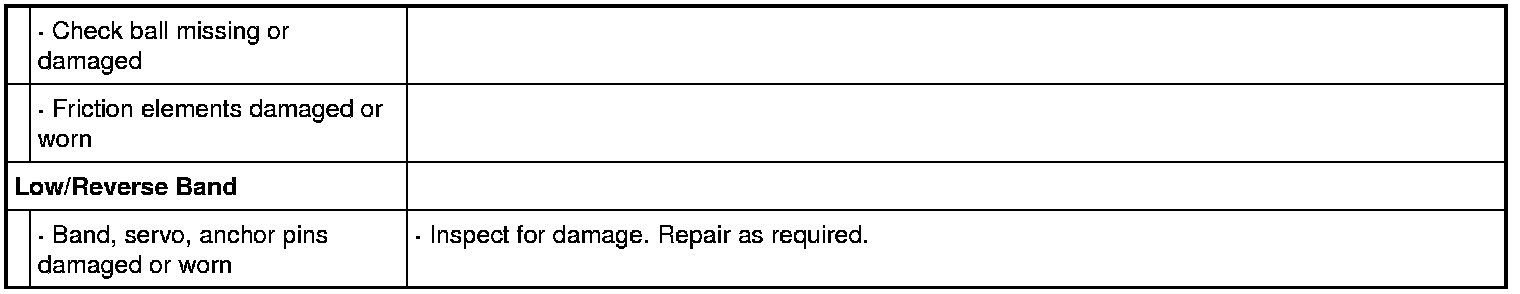

Engagement Concern: No Reverse (Part 2):
