PINPOINT TEST D: THE TCS DOES NOT OPERATE CORRECTLY
-------------------------------------------------
D1 CHECK CJB FUSE 26 (10A)
- Check fuse: CJB 26 (10A).
- Is the resistance less than 5 ohms?
Yes
GO to D2.
No
GO to D3.
-------------------------------------------------
D2 CHECK TCS SYSTEM
- Disconnect: PCM C175B.
- Ignition ON.

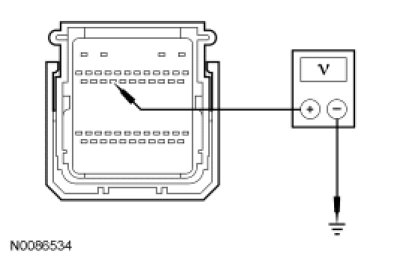

- Measure the voltage between PCM C175B-27 and ground while cycling the Transmission Control Switch (TCS).
- Does the voltage cycle from 0 volt to 12 volts?
Yes
INSTALL a new PCM. RECONNECT all components. TEST the system for normal operation.
No
GO to D3.
-------------------------------------------------
D3 CHECK CIRCUIT 640 (RD/YE) FOR A SHORT TO GROUND
- Ignition OFF.
- Disconnect: CJB Fuse 26 (10A).
- Disconnect: PCM C175B.
- Disconnect: TCS C279.

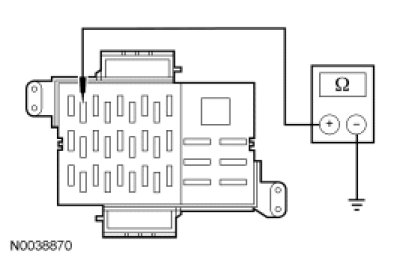

- Measure the resistance between the output side of CJB fuse 26 (10A) and ground.
- Is the resistance greater than 10,000 ohms?
Yes
GO to D4.
No
REPAIR circuit 640 (RD/YE) for a short to ground. REINSTALL all components. TEST the system for normal operation.
-------------------------------------------------
D4 CHECK CIRCUIT 640 (RD/YE) FOR AN OPEN

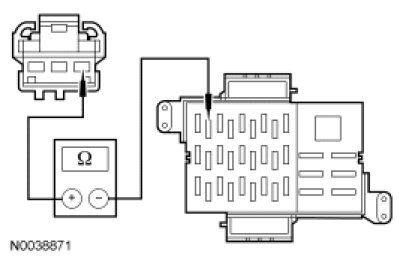

- Measure the resistance between the output side of CJB fuse 26 (10A) and TCS C279-1, circuit 640 (RD/YE), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to D5.
No
REPAIR circuit 640 (RD/YE) for an open. RECONNECT all components. TEST the system for normal operation.
-------------------------------------------------
D5 CHECK CIRCUIT 224 (TN/WH) FOR AN OPEN

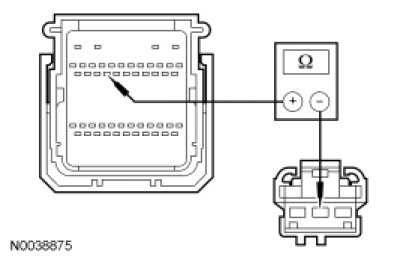

- Measure the resistance between TCS C279-2 and PCM C175B-27, circuit 224 (TN/WH), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to D6.
No
REPAIR circuit 224 (TN/WH) for an open. RECONNECT all components. TEST the system for normal operation.
-------------------------------------------------
D6 CHECK CIRCUIT 224 (TN/WH) FOR A SHORT TO GROUND

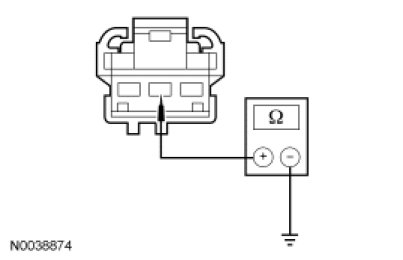

- Measure the resistance between TCS C279-2, circuit 224 (TN/WH), harness side and ground.
- Is the resistance greater than 10,000 ohms?
Yes
INSTALL a new selector lever. REFER to Selector Lever Service and Repair. RECONNECT all components. TEST the system for normal operation.
No
REPAIR circuit 224 (TN/WH) for a short to ground. RECONNECT all components. TEST the system for normal operation.
-------------------------------------------------
