Home >> Mercury >> 2009 >> Grand Marquis V8-4.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Transmission Pan Torque and Sequence

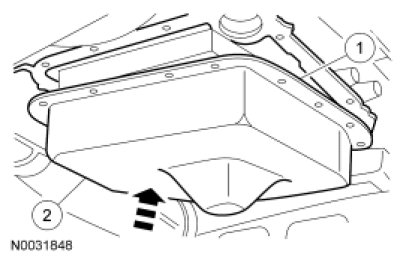

Transmission Pan Torque and Sequence

Install the transmission fluid pan bolts.
Tighten to 14 Nm (124 lb-in).
