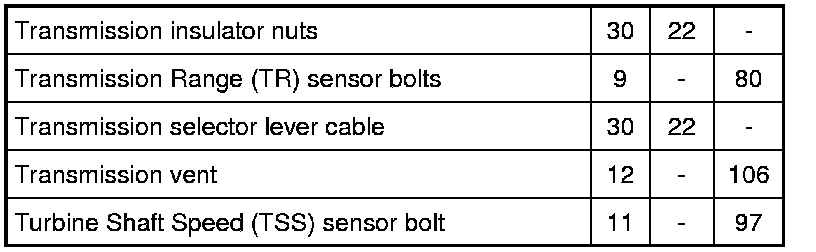

Torque Specifications











a Specific tightening sequence is required. Refer to the procedure.
