Speed Control Switch

Speed Control Switch

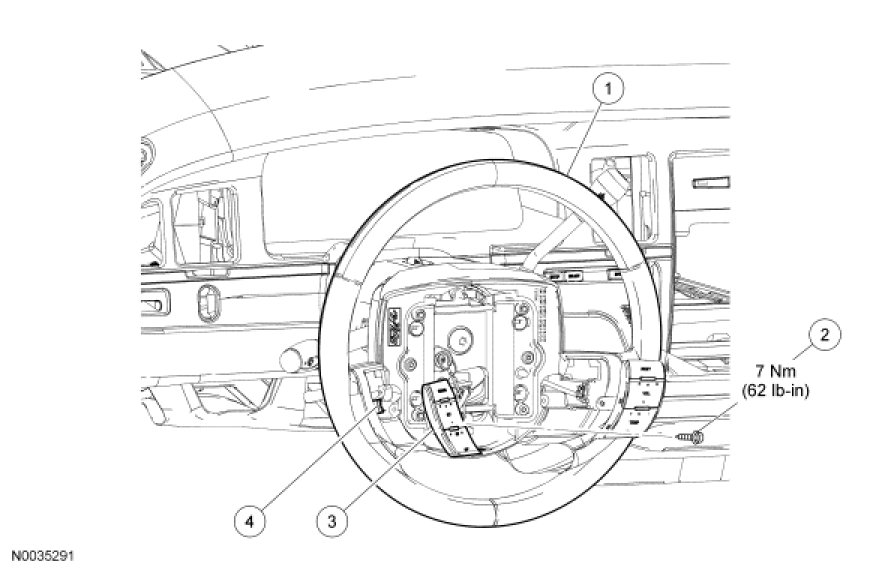

NOTE: Vehicles with remote audio/climate controls shown, vehicles without remote audio/climate controls similar.










Removal and Installation

1. Remove the driver air bag module. For additional information, refer to Air Bag Systems.

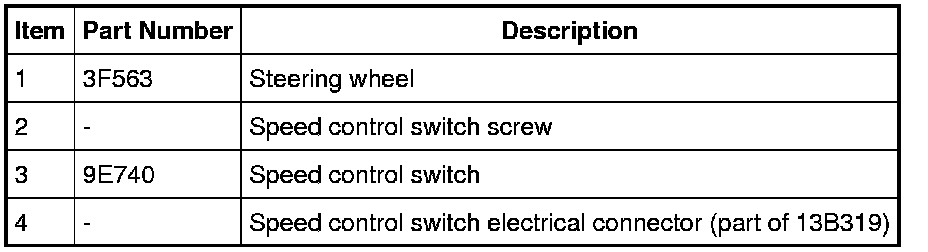

2. Remove the screw and the speed control switch.
- Disconnect the electrical connector.

- To install, tighten to 7 Nm (62 lb-in).

3. To install, reverse the removal procedure.
