Wheel Speed Sensor - Rear

Wheel Speed Sensor - Rear

Removal and Installation









1. WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in Fire Suppression System. Failure to follow the instructions may result in serious personal injury Procedures.
Remove the rear seat cushion.

2. Disconnect the rear wheel speed sensor electrical connector.

3. Push the wheel speed sensor harness grommet through the passenger compartment floor.

4. Remove the wheel and tire.

5. Disconnect the wheel speed sensor harness clips.

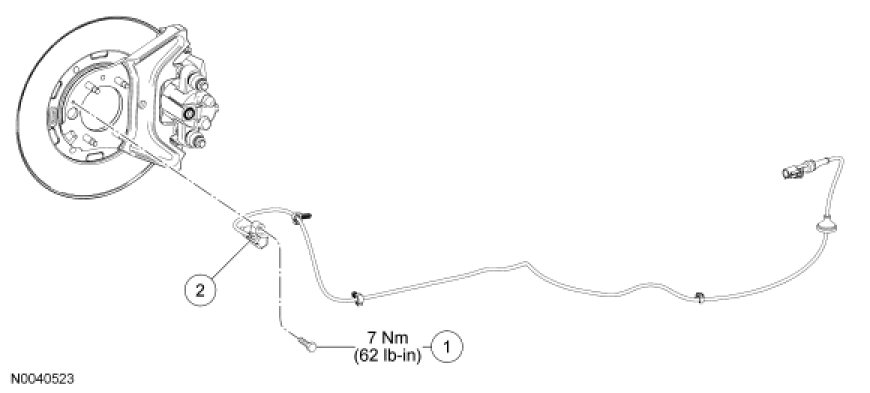

6. Remove the rear wheel speed sensor bolt and the sensor.
- To install, tighten to 7 Nm (62 lb-in).

7. WARNING: If the vehicle is equipped with a fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System. Failure to follow these instructions may result in serious personal injury Procedures.
To install, reverse the removal procedure. If equipped with a fire suppression system, repower the system.
