Suspension Control Module: Service and Repair

Vehicle Dynamics Module (VDM)









Removal and Installation

WARNING: Shut off the electrical power to the air suspension system prior to hoisting or jacking an air suspension equipped vehicle. Failure to do so may result in unexpected inflation or deflation of the air springs, which may result in shifting of the vehicle during these operations. Failure to follow this instruction may result in serious personal injury.

NOTICE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

1. Turn the air suspension service switch to the OFF position.

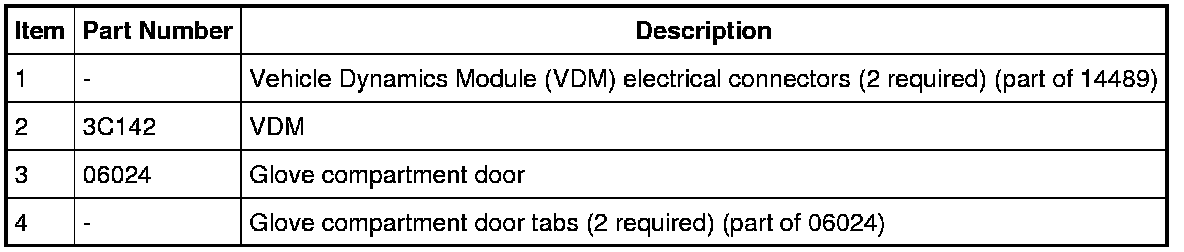

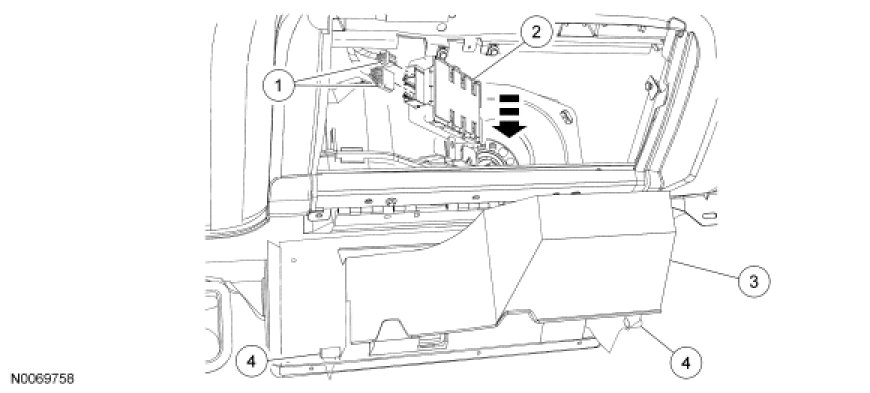

2. While pushing in on the 2 glove compartment door tabs, position the glove compartment downward.

3. Remove the Vehicle Dynamics Module (VDM)) in the following sequence.

1. Disconnect the 2 electrical connectors.

2. Disconnect the module from the bracket.

3. Remove the VDM.

4. To install, reverse the removal procedure.
