Air Cleaner Outlet Pipe

Air Cleaner Outlet Pipe

Removal and Installation

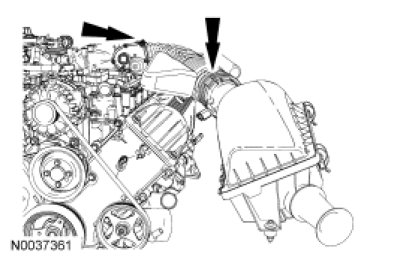

1. Disconnect the crankcase ventilation hose quick connect coupling from the Air Cleaner (ACL) outlet pipe.

2. Loosen the clamps on both ends of the ACL outlet pipe.
- To install, tighten to 4 Nm (35 lb-in).





3. Remove the ACL outlet pipe.
- To install, position the ACL outlet pipe on the Throttle Body (TB) first and line up the alignment tabs to correctly seat the pipe.

4. To install, reverse the removal procedure.
