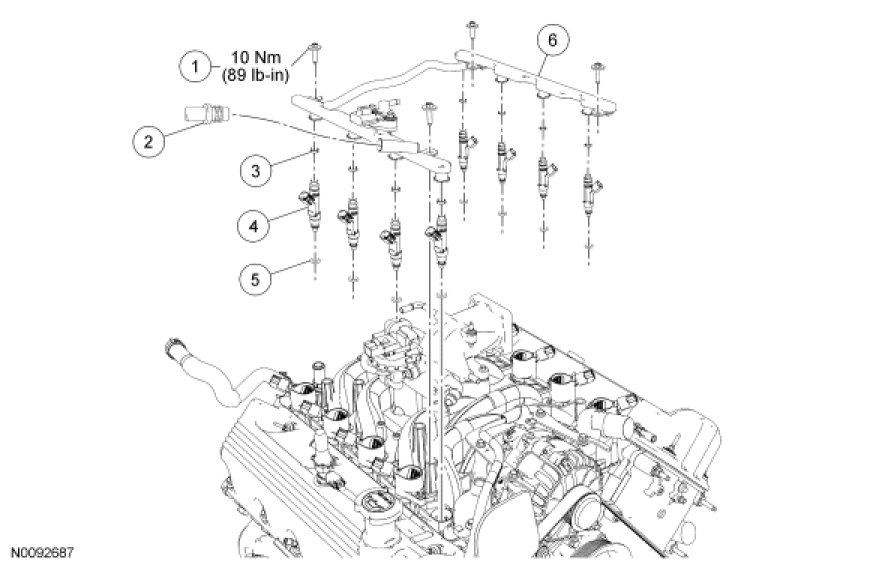

Fuel Rail and Fuel Injector - Exploded View

Fuel Rail and Fuel Injector - Exploded View

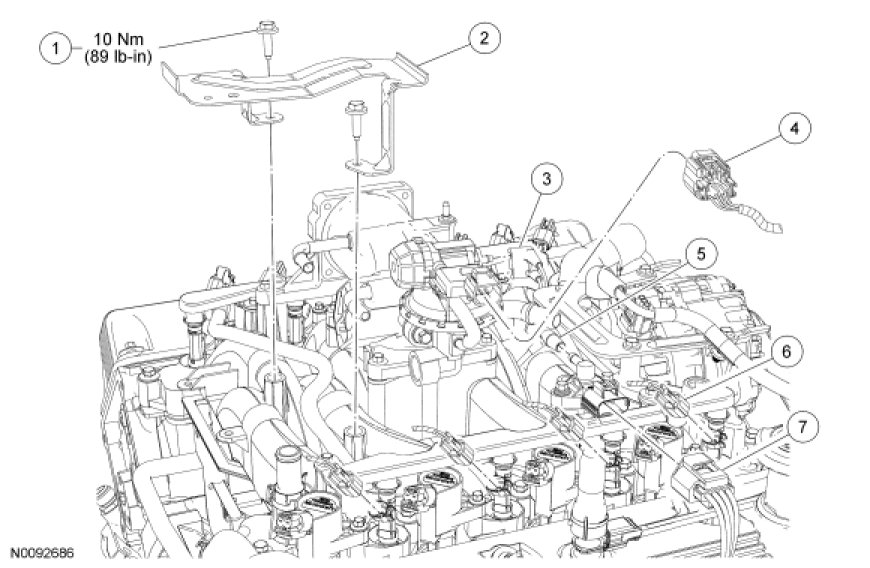

Intake Manifold Bracket, Hoses and Electrical Connectors

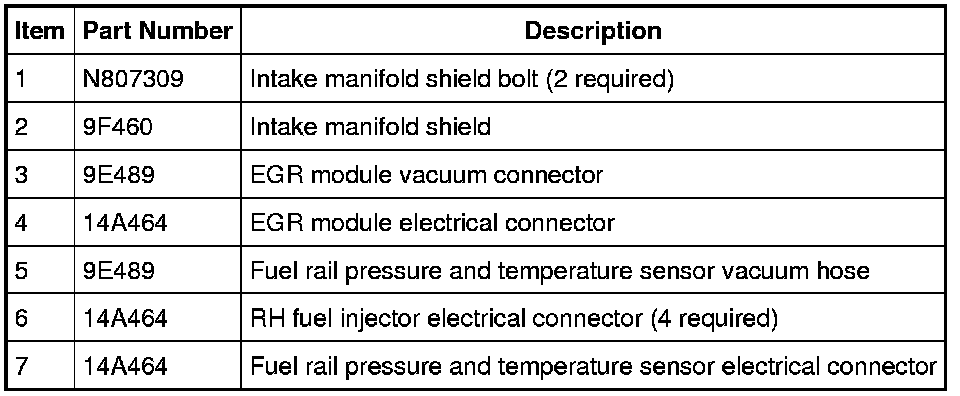

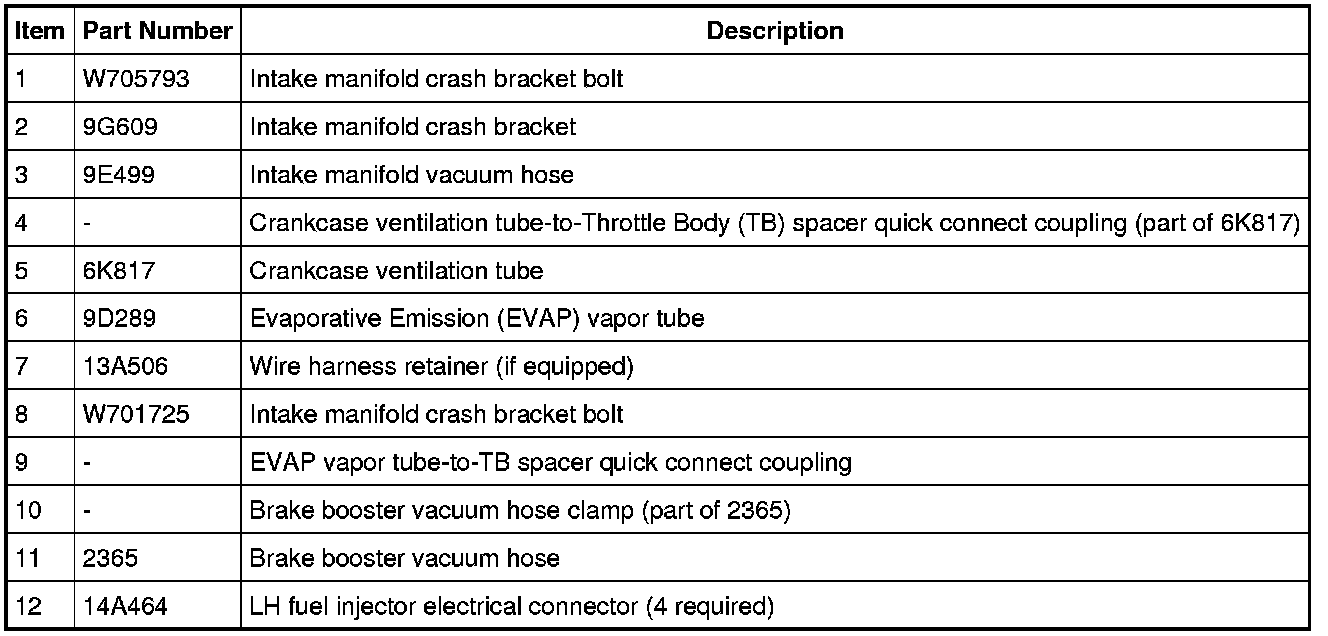

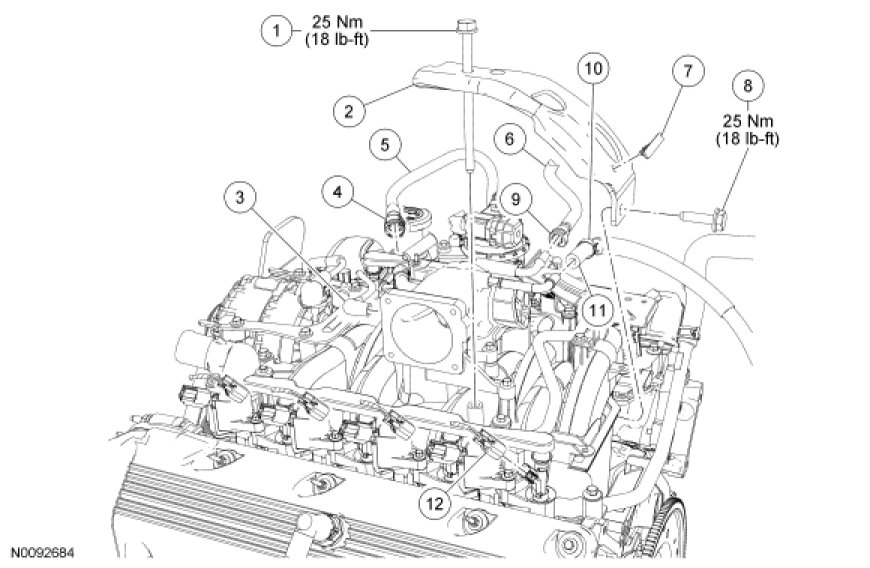

Intake Manifold Shield, Hoses and Electrical Connectors











Fuel Rail and Injectors









1. For additional information, refer to the procedures.
