Accelerator Pedal and Bracket

Accelerator Pedal and Bracket

Adjustable Accelerator Pedal and Bracket

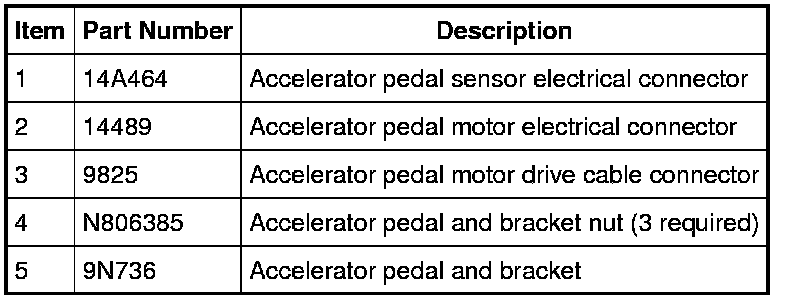

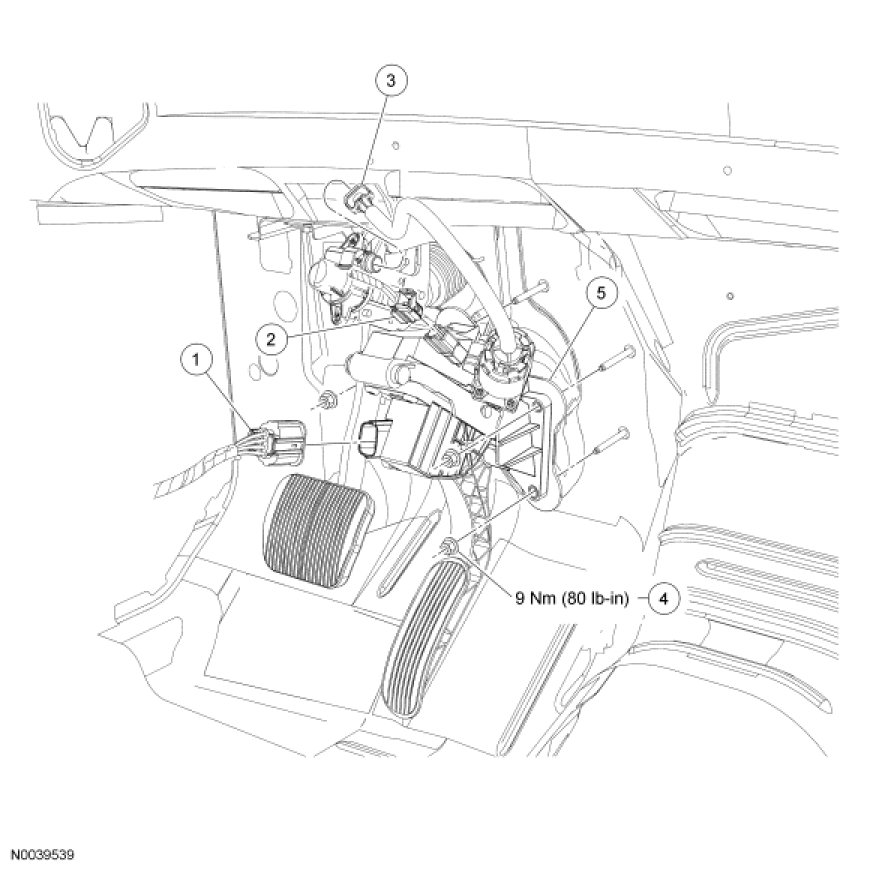

Removal

1. NOTE: To prevent setting DTCs, make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connectors.

Disconnect the accelerator pedal sensor electrical connector.

2. Disconnect the accelerator pedal motor electrical connector.

3. Disconnect the accelerator pedal motor drive cable connector.

4. Remove the 3 nuts and the accelerator pedal and bracket assembly.

Installation

1. Install the accelerator pedal and bracket assembly.

2. Install the 3 accelerator pedal and bracket retaining nuts.
- Tighten to 9 Nm (80 lb-in).

3. Connect the accelerator pedal motor drive cable connector.

4. Connect the accelerator pedal motor electrical connector.

5. Connect the accelerator pedal sensor electrical connector.

6. Carry out the adjustable pedal indexing procedure.
