Instrument Cluster (IC) Lens

Instrument Cluster (IC) Lens

Removal and Installation

NOTE: The Instrument Cluster (IC) lens and the mask are removed and installed as an assembly.

1. Remove the IC. For additional information, refer to Instrument Cluster (IC) Instrument Cluster (IC).

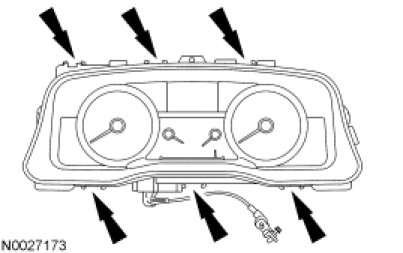

2. Release the 6 black clips and remove the IC lens/mask assembly.





3. To install, reverse the removal procedure.
