PCM DTC Chart
PCM DTC Chart
Climate Control System

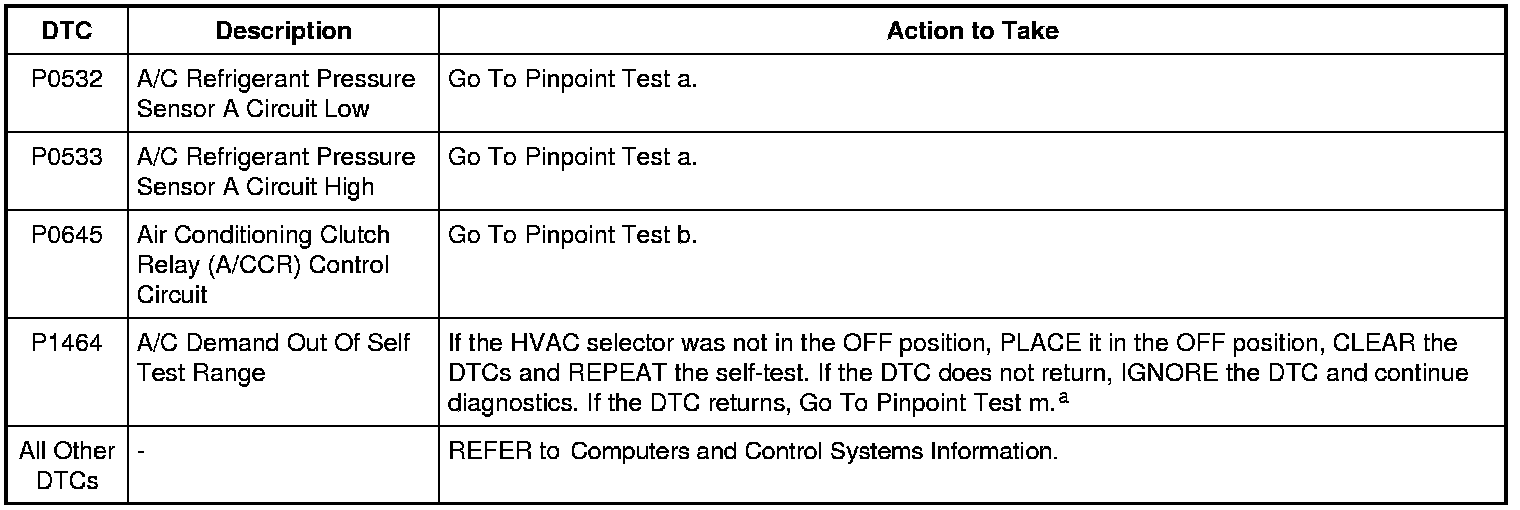

PCM DTC Chart
P0532-P1464:
a
PCM DTC P1464 will set if the function selector is in PANEL with A/C button pressed, DEFROST or MAX A/C mode when the on-demand self-test is being run.
