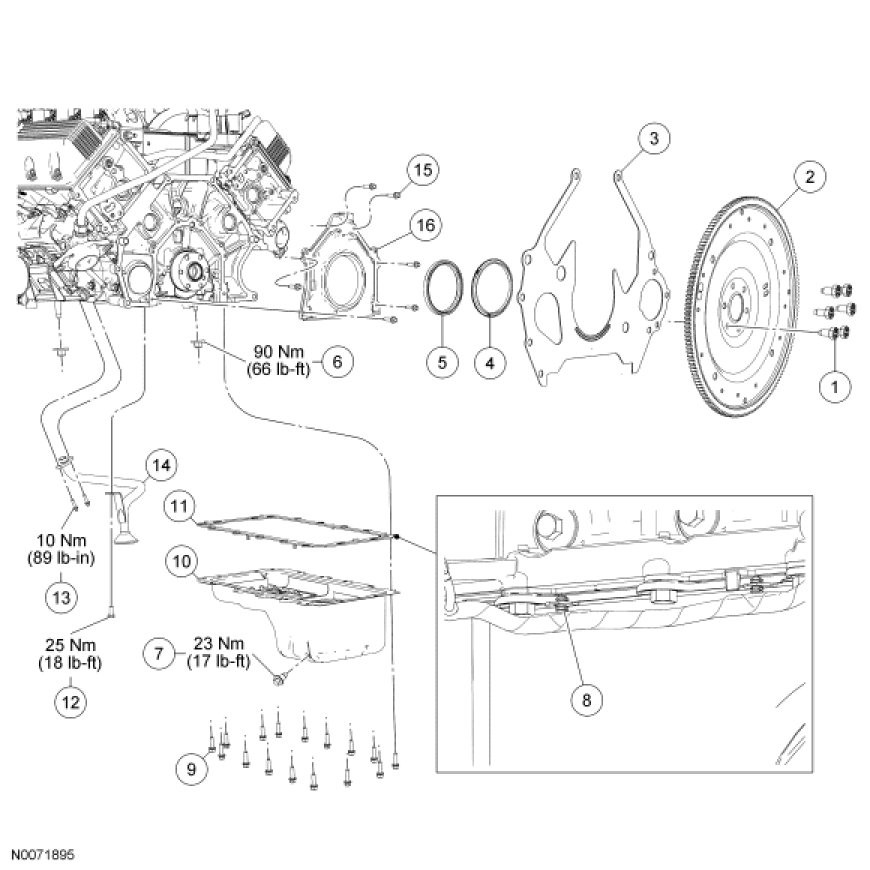

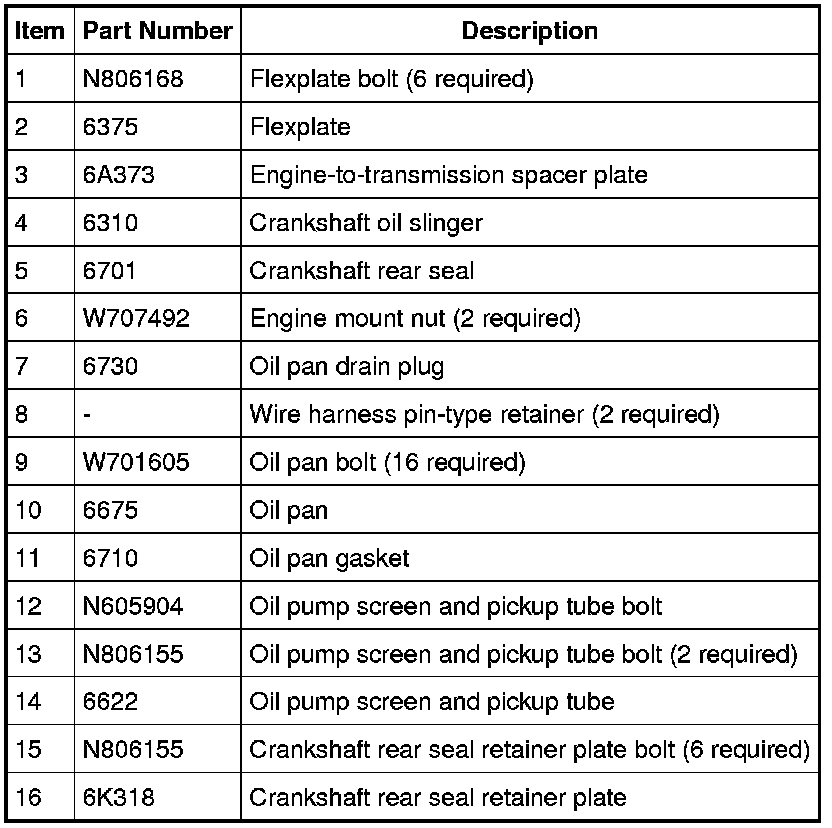

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal with Retainer Plate

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal with Retainer Plate









1. For additional information, refer to the procedures.
