Accessory Drive Belt Tensioner

Accessory Drive Belt Tensioner

Removal

1. Remove the accessory drive belt. For additional information, refer to Accessory Drive Belt [1][2]Accessory Drive Belt.

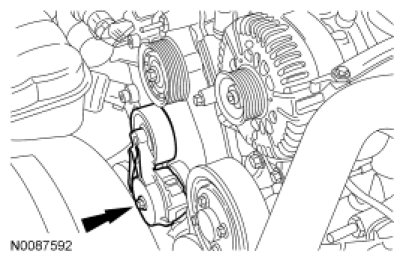

2. Remove the bolt and the accessory drive belt tensioner.





Installation

1. Install the accessory drive belt tensioner.

Tighten the bolt in 2 stages:
- Stage 1: Tighten to 10 Nm (89 lb-in).

- Stage 2: Tighten an additional 90 degrees.





2. Install the accessory drive belt. For additional information, refer to Accessory Drive Belt [1][2]Accessory Drive Belt.
