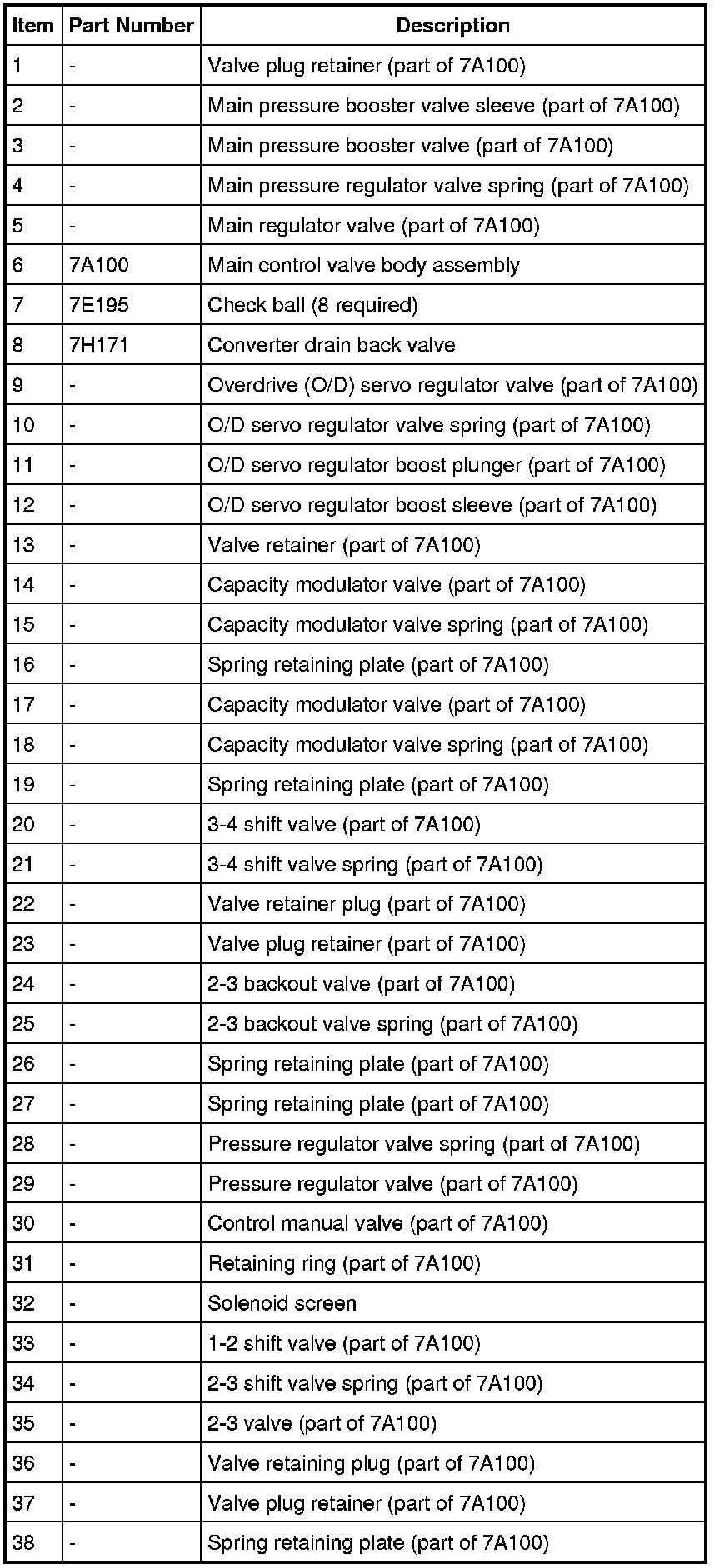

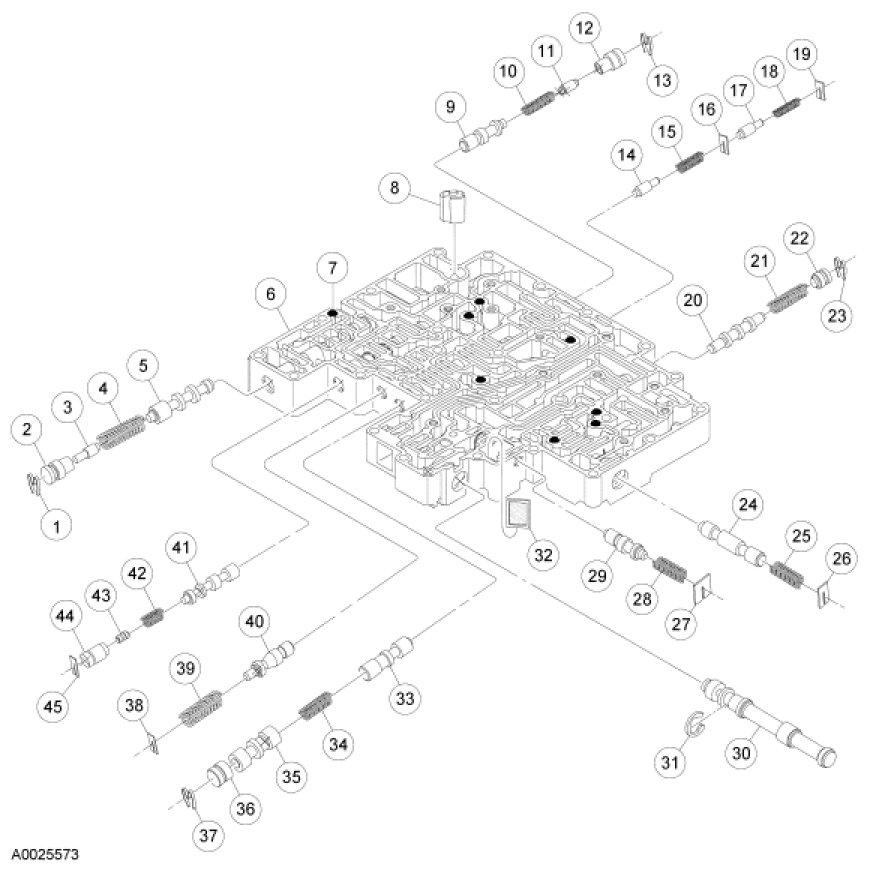

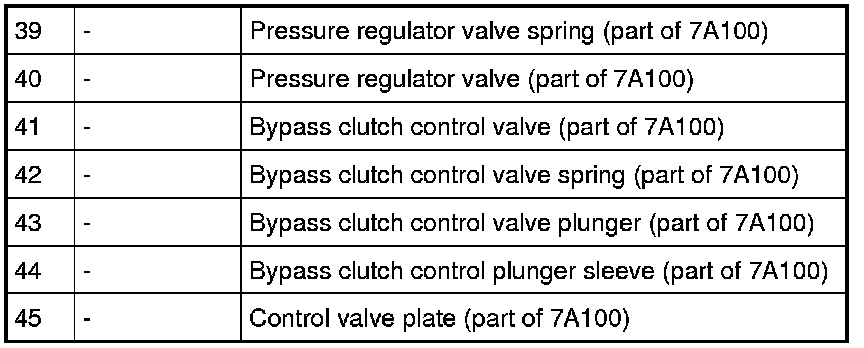

Main Control Valve Body - Disassembled View




Main Control Valve Body - Disassembled View

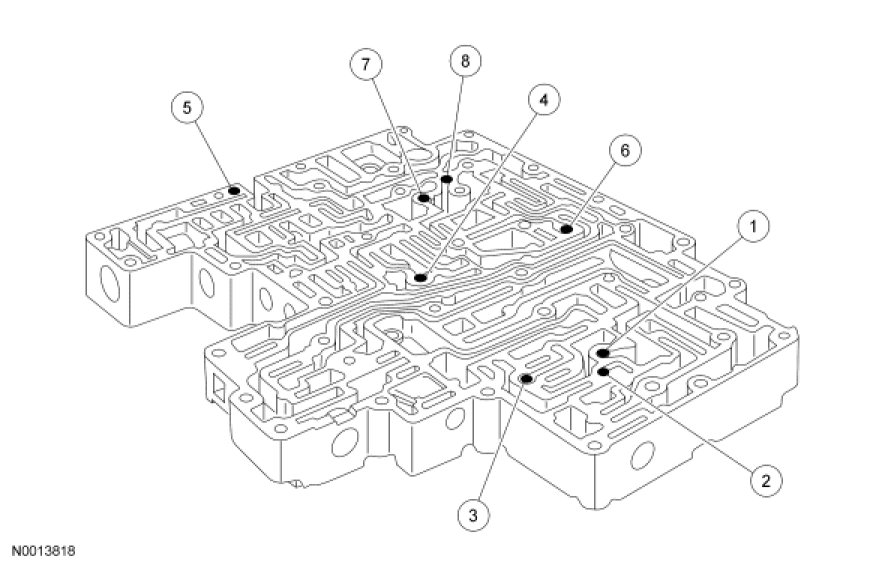

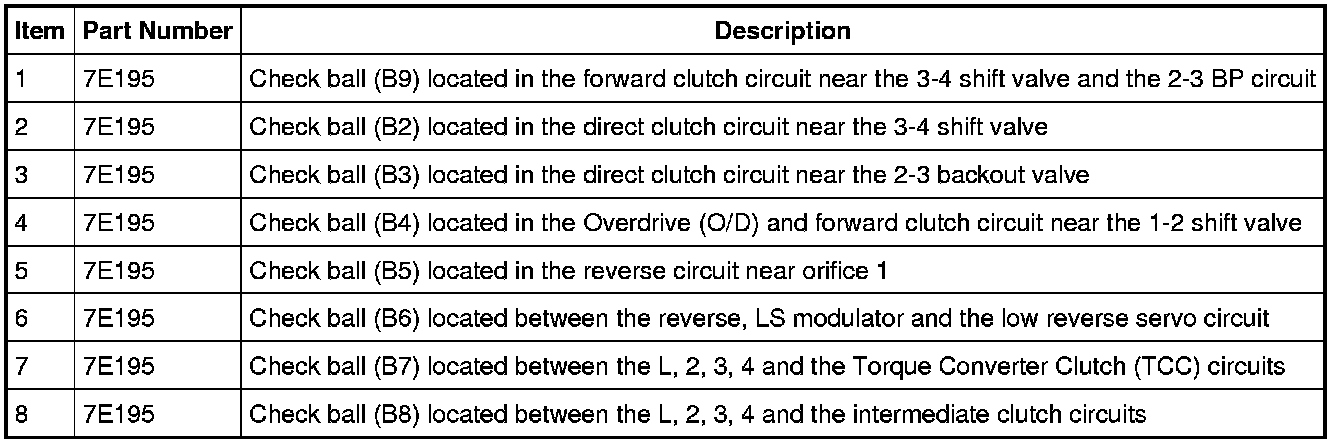

NOTE: Note the location of the 8 coasting booster valve shuttle balls for assembly.
