Inspection and Verification

Parking Brake



Inspection and Verification

WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in Fire Suppression System. Failure to follow the instructions may result in serious personal injury Procedures.

1. Verify the customer concern.

2. Visually inspect the following mechanical and electrical components:

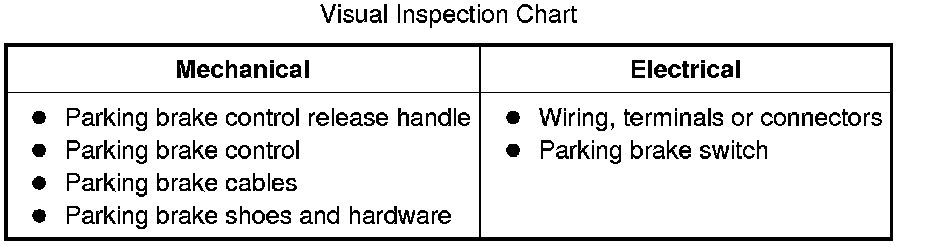

Visual Inspection Chart:

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.

4. If the cause is not visually evident, verify the symptom and GO to Symptom Chart. Symptom Related Diagnostic Procedures
