Inspection and Verification

Rear View Mirrors - Exterior


Inspection and Verification

WARNING: If equipped with fire suppression system, refer to Fire Suppression System for Important Safety Warnings. Failure to follow this instruction may result in serious personal injury. Procedures

1. Verify the customer concern.

2. Visually inspect for obvious signs of mechanical or electrical damage.

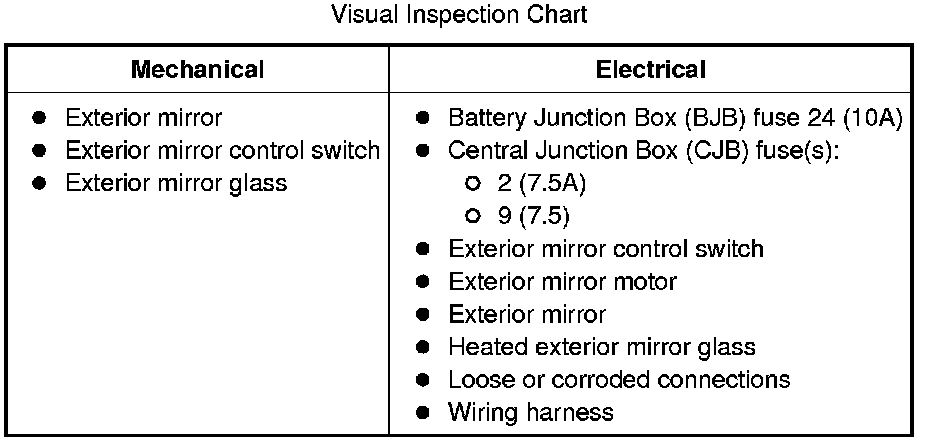

Visual Inspection Chart:

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.

4. If the concern is not visually evident, verify the symptom and GO to Symptom Chart - Exterior Mirrors or GO to Symptom Chart - NVH. Symptom Chart - Exterior Mirrors Symptom Chart - NVH
